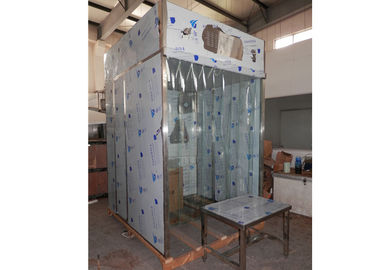

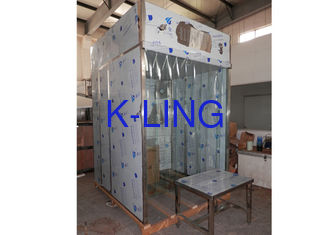

SUS304 GMP Standard Dispensing Booths For GMP Workshop 415V 50HZ

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

SUS304 GMP Standard Dispensing Booths For GMP Workshop 415V 50HZ

SUS304 GMP Standard Dispensing Booths For GMP Workshop 415V 50HZ
SUS304 GMP Standard Dispensing Booths For GMP Workshop 415V 50HZ

Large Image :  SUS304 GMP Standard Dispensing Booths For GMP Workshop 415V 50HZ

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DS2025
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
Other Name: Down Flow Booth Material: Entirety 304(T=1.0mm)
Purification Rank: ISO5 DOP/POA: 1 PCS For Each
Fan: 0.75KW 415V 50HZ 3 Phase Filtration Step: H13+F6+G3
High Light:

pharmaceutical sampling booth

,

downflow booth

SUS304 GMP Standard Dispensing Booths For GMP Workshop 415V 50HZ





Quicky Detail:


Negative Pressure

DOP port

GMP Standard
Purification rank: Class100
3 Step filtration

( HEPA filter + Secondary Filter + Primary Filter )
Air speed:0.3-0.6m/s( Adjusable)
Power: 415V/50HZ



Company Information :



Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment , HVAC air filter, clean room product such as clean room air shower, Air shower room for GMP /QS Standard, stainless steel air shower room, Pass box, pass thru, Laminar flow bench, Hard wall clean room, soft wall clean room, HEPA filter unit series, clean shed, clean booth, laminar flow booth Dispensing booth, sampling booth, down flow booth, fan filter unit(EBM Fan), static pass boxes, medical clean pass boxes, pharmaceutical static pass boxes,Mini-pleats ULPA/HEPA air filter, V-cell filter, pocket air filter, panel air filter, bag air filter,  z-line filter, and so on .

Introduce :

The weighting/Dispensing room is one kind of clean equipment which used in pharmacy, micro-organism research and scientific experiment, it can supply the single way airflow, and part of the clean air will
be circulated in the working area, the other part will be exhaust outside, it can make the working
area negative pressure to prohibit cross population, it can guarantee the working area with high clean grade.



Technical Parameter :





 Model

KEL-DB2025

External size(mm)

 2100x2800x2400mm

Internal size(mm)

2000X2500X1950mm

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .

Customer’s design is available.







Operating features:



  1: Materal SUS 304(T=1.0)
  2: Pre Filter: G5 Grade.
  3: Efficiency:90% down to 10 Microns.
  4: Intermediate Filter Intermediate Filter of G7 Grade.
  5: Efficiency:95% down to 3 Microns.
  6: Final Supply Filter HEPA Filter of H13 Grade.
      Efficiency:99.99% down to 0.3 Microns.
  7: Exhaust Filter EU 13 rating, with suitable size.
  8: Efficiency: 99.99% down to 0.3 Microns.
  9: Motor Blower Assembly Statically & Dynamically balanced with suitable rating and size.
 10: performance Air Cleanliness:Class ISO 5 (as per ISO 14644-1).
 11: Air Flow Rate:0.45 + 0.1m/sec.
 12: Noise Level:Less than 70 db 'A'.
 13: Vibration Level:Minimum.
 14: Instrumentation Illumination Of Light:Optimum.
 15: Magnehelic Differential Pressure Gauge
 16: 3 Pins Switch & Socket



Principles:

The air in the work shop will pass though primary filter, medium efficiency filter and was pressed
into static pressure box by centrifugal fan, after that, it will pass though the high efficiency
filter and blow through FFU, the clean air will flow by average speed over the working area, then
it forms the high clean grade working environment. The center weight room’s operating area will
be keep at negative pressure condition, exhaust 10% circulated air. The small chamber air in center
weighting room will pass through three grade filter system (high efficiency filter will remove
99.99% granules ≥0.3um) to make own circulated, its design meet cGMP request.



Factory test:


All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Why you choose K-LING Company ?



Professional sales:


• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team



Punctual delivery time:


• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
   After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.



Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
