| Application: | Auto Cleanroom Air Shower | Purification Rank: | Bio Pharmaceutial Workshop |
|---|---|---|---|
| HEPA Filter: | H13 | Filter Size: | 595x595x80mm |
| Air Speed: | >25m/s | Noise: | Less Than 75dB |
| External Size: | 1300x1000x2180mm | Internal Size: | 800x960x1910mm |
| HEPA Efficiency: | 99.995%@0.3um | Cleanroom: | General Cleanroom |
| Type: | Air Shower | Air Shower Time: | 0-99s(adjustable) |
| Cetficated: | ISO9001 | ||
| High Light: | pharmaceutical clean room,lab clean room |
||

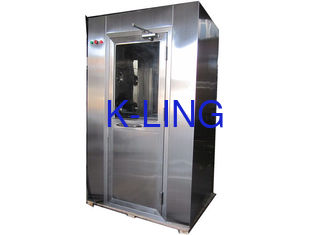

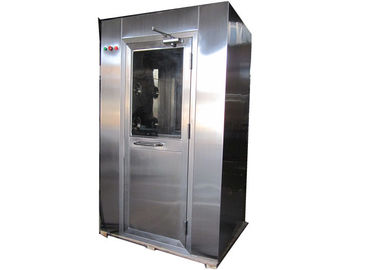

Three Directional Blow Auto Cleanroom Air Shower For Bio Pharmaceutial Workshop
Quickly detail
External Size: 1300x1000x2180mm
Internal size : 800x930x1910mm
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 1-2 person
SUS nozzle: 16pcs
Blower way : three side blowing (top , right and left )
Air speed :>25m/s
Power: 380V/50HZ, 440V/50HZ, 415V/50HZ
Introduction:
Cleanroom Air showers serve to protect your cleanroom environment from unwanted contamination.
Clean garments become contaminated during the gowning/ungowning process, general use, and
because of high traffic in the gowning area. The contamination problem is amplified when the
same garment is worn several times or is taken on and off numerous times during the day.
The Series KEL-AS1300 Cleanroom air shower is a fast and effective method of removing this surface contamination, contamination that will otherwise be carried directly to your cleanroom and deposited on
your product and critically clean areas by sloughing off from the surface of the garments.
cleanroom Air showers are available in a variety of sizes and shapes to provide a cleaning system to meet
your specific application.
operating features :
1) Material: Stainless Steel SUS304;
2) Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
3) Emergency off button is installed in case of electricity power is suddenly lost.
Once press, two doors open;
4) LCD Display, touch-point switch to control blowing time and lamp time;
5) Infrared sensor automatic blowing, automatic stop;
6) Three-side blowing, left, right and top, stainless steel nozzles;
7) Germany Dorma door closer, stable. China KFC stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed to keep high efficiency for blowing off particles from
personnel;
9) Have electronic interlock air shower patent.
|
KEL-AS1300P Series |
||||
|
Model |
KEL-AS1300-P1 |
KEL-AS1300-P2 |
KEL-AS1300-P3 |
|
|
External size(mm) (WXDXH) |
1300x1000x2180 |
1300x2000x2180 |
1300x3000x2180 |
|
|
Work zone (mm)(WXDXH) |
800x930x1910 |
800x1930x1910 |
800x2930x1910 |
|
|
Persons per cycle |
1-2 person |
2-4 person |
3-6 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|||
|
Material |
Steel with white color epoxy power-coated or Stainless steel |
|||
|
Fan consumption |
0.75KWX2 set |
0.75KWX4 sets |
0.75KWX6sets |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|||
|
Fan run (r/min) |
2800r/min |
|||
|
Nozzle in stain less steel |
16 pcs |
32 pcs |
48pcs |
|
|
Wind speed(m/s) |
> 22-27m/s |
|||
|
Noise level(dB) |
<62dB |
|||
|
LED Fluorescent Lamp |
20wx1 |
20wx2 |
20wx3 |
|
|
HEPA Filter |
Size(mm) |
630X630X69mm |
||
|
Efficiency |
99.99%@0.3um |
|||
|
Air velocity |
1000(m3/h) |
|||
|
Resistance |
<220pa |
|||
|
Pre-filter |
Size(mm) |
785x385x21 |
||
|
Efficiency |
75% @ 5um |
|||
|
Resistance |
<30 Pa |
|||
|
Electrical |
Power supply |
380v/50Hz |
||
Application :
Electronic/ microelectronics/ precision electronic/ biological manufacturing industry/ medical
industry/ food processing/ ITO mode/ liquid crystal and conductive photoelectric suggests
that the industry/ PCB/ SMT manufacturing industry/ aerospacevoyage/ aumomobie manufacturing
industry/ dust-free painting industry and other industry,
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
