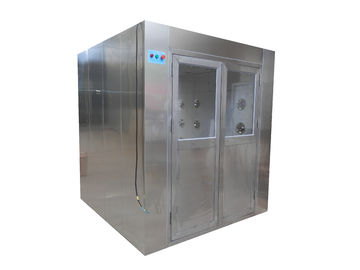

Stainless Steel Air Shower Passage / Tunnel Clean Room Ventilation System

Stainless Steel Air Shower Passage / Tunnel Clean Room Ventilation System
Stainless Steel Air Shower Passage / Tunnel Clean Room Ventilation System Stainless Steel Air Shower Passage / Tunnel Clean Room Ventilation System

Large Image :  Stainless Steel Air Shower Passage / Tunnel Clean Room Ventilation System

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP1950T-P4 SERISE
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT
Supply Ability: 50UNITS/MONTH
Detailed Product Description
MODEL: KEL-AS1950P4 Material: Stainless Steel304(t=1.0)
Door: Double Swing Door Blowing: 3 Side Blowing
Nozzle: 40 Pcs SUS Noise: Less Than 75dB
Product Name: Stainless Steel Air Shower Tunnel Other Name: Cleanroom Air Shower Tunnel
High Light:

air shower system

,

biological clean room

Intelligence Air Shower Passage/Tunnel Clean Room Ventilation System For  GMP Workshop





Quicky detail



Extenal Size: 1400x3200x2180mm

Internal size: 1000x3130x1910mm

HEPA air filter efficiency : 99.995%@0.3um

air speed:more than 25m/s

Alternative type :One row person with three side blowing

Purification rank: Class100

Personal per cycle: 20-50 person

SUS nozzle: 64pcs

Power: 380V/ 50HZ .  440V/50HZ





Introduced :



Air shower passage/ tunnel  is a kind of partial purifying equipment of strong universality.
With novel structure, beautiful appearance, reliable running, low consumption, energy saving
and convenient maintenance, it is widely used in electron, machinery, medicine, foodstuff,
color packing, brewage, biological engineering and other industry and scientific research
fields. It is usually installed between clean room and unclean room. When people and goods
enter into clean room, they have to be blown at first. The blown clean air can get rid of
dust boughby people and goods and can effectively prevent dust source from entering into clean area.





Principle :


Intelligence Air Shower Passage/Tunnel Clean Room Ventilation System For GMP Workshop  is supplied by the fan, The air inside of air shower tunnel is firstly filtered under the action of fan and enters
into static pressure tank. After filtered with high-efficiency air filter, clean air is jet out at high speed from the nozzle of air shower tunnel. The nozzle angel is adjustable.It can effectively blow out dust attached on people and goods' surface. The blown dust enters into primary-efficiency air filter again, circulating so and reaching to the aim of air shower. Air shower tunnel  material
 1. Color steel plate
 2. Steel plate
 3. Stainless steel




Operating features :





1 :  High-tech smart programmable microprocessor controller

2:  The air shower duration time adjustable from 0-99second.

3:   Infrared ray inductor for inside personal shower automatic from three side

4:   Human being voice remind of user progress in chamber.

5:   Emergency switch help you out of trouble, Comply with CE Test

6:   Automatic control operation, two-door electronic interlocking, infrared sensors,

      automatic air showering.



Application :



Semiconductor plant, microelectronics plant, bio-pharmaceutical plant

KEL-AS1400T-3 Air shower Tunnel

Model

KEL-AS1400T-3.2

External size(mm) (WXDXH)

1400x3200x2180mm

Work zone

(mm)(WXDXH)

1000x3130x1910mm

Persons per cycle

3-10 person

Air shower Duration

Factory set at 12 second (adjustable)

Material

1: Entirety Sus304.(T=1.0/1.2mm)

2:External is steel with power coated,

Internal is SUS304.(T=1.0/1.2mm)

3: External is steel with power coated.

Internal is SUS201. (T=1.0/1.2mm)

Fan consumption

0.75KWX3 set

Air flow of fan(m3/h)

1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

64 pcs

Wind speed(m/s)

> 22-27m/s

Noise level(dB)

<62dB

LED Fluorescent Lamp

20wx3





HEPA Filter

Size(mm)

630X630X96mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Resistance

<220pa





Pre-filter

Size(mm)

785x385x21

Efficiency

75% @ 5um

Resistance

<30 Pa

Electrical

Power supply

380v/50Hz OR 440v/50Hz

Customer’s design is available.





Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
