| Name: | Air Shower Tunnel | Tunnel Type: | Z Or U Type |
|---|---|---|---|
| Control System: | PLC Or PCB Control System | Light: | Purification Lamp |
| Blowing Ways: | 3 Side Blowing | Floor: | SUS 304 Board |
| Door: | Sus304 Single Door | Other Product Name: | Electronic Factory Air Shower |
| High Light: | air shower system,biological clean room |
||

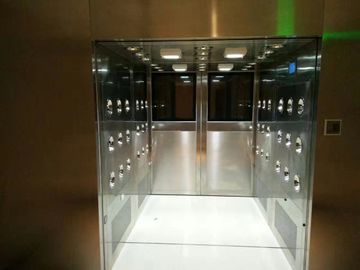

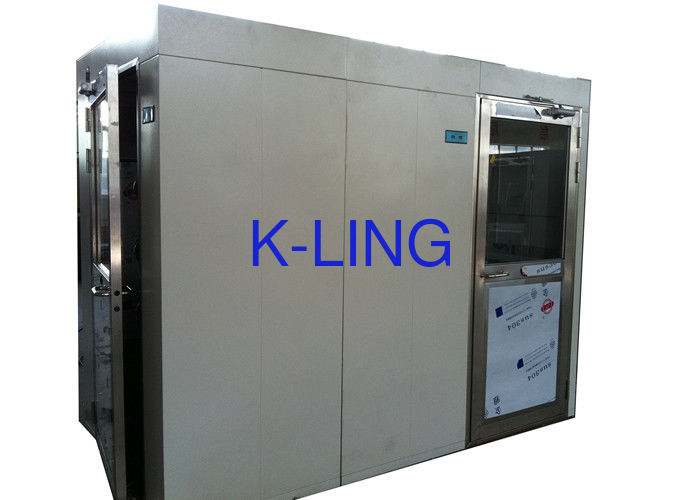

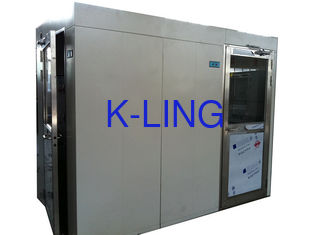

Vertical Blowing Class 1000 Air Shower Tunnel / Channel For Electronic Factory
Quicky Detail
Size: 1300x6500x2180mm
Internal side : 800x6430x1910mm
Alternative type : One row man with vertical blowing
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 6-50 person
SUS nozzle: 96pcs
Blower way: one side blower
Air speed :>25m/s
Power: 380V/50HZ, 380V/60HZ, 440V/60HZ
Introduction:
Air shower series product is a kind of partial purifying equipment of strong universality.
With novel structure, beautiful appearance, reliable running, low consumption, energy saving
and convenient maintenance Vertical Blowing Class 1000 Air Shower Channel/Tunnel For Electronic Factory is a related equipment forclean workshop and clean room, which not only removes dust from the surface of people and goods,but also plays as a role of air lock valve to prevent unpurified air from flowing into theclean area. It can be used with all supporting clean room and clean workshop.
Operating Features :
1 : Microelectrronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
6: Two doors equipped with imported door closers, automatically close.
|
KEL-AS1300T-6.5 Air shower Tunnel |
||
|
Model |
KEL-AS1300T-6.5 |
|
|
External size(mm) (WXDXH) |
1300x6500x2180 |
|
|
Work zone (mm)(WXDXH) |
800x6430x1910 |
|
|
Persons per cycle |
6-50 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
|
Material |
1: Entirety Sus304.(T=1.0/1.2mm) 2:External is steel with power coated, Internal is SUS304.(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201. (T=1.0/1.2mm) |
|
|
Fan consumption |
0.75KWX6set |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|
|
Fan run (r/min) |
2800r/min |
|
|
Nozzle in stain less steel |
96 pcs |
|
|
Wind speed(m/s) |
> 22-27m/s |
|
|
Noise level(dB) |
<62dB |
|
|
LED Fluorescent Lamp |
20wx5PCS |
|
|
HEPA Filter |
Size(mm) |
630X630X96mm |
|
Efficiency |
99.99%@0.3um |
|
|
Air velocity |
1000(m3/h) |
|
|
Resistance |
<220pa |
|
|
Pre-filter |
Size(mm) |
785x385x21 |
|
Efficiency |
75% @ 5um |
|
|
Resistance |
<30 Pa |
|
|
Electrical |
Power supply |
380v/50Hz OR 380v/60Hz. 440V/60HZ 3 PHASE |
|
Customer’s design is available. |
||
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
