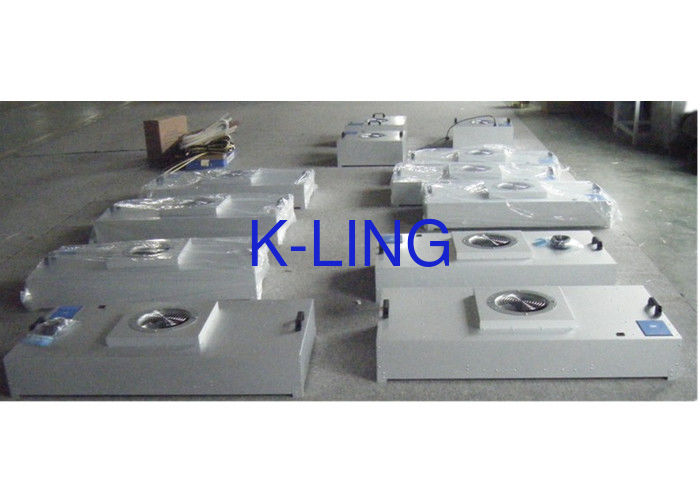

Clean Room Fan Filter Units / FFU With Speed Group Control System
Quicky Detail
Internal Size: 615x615x615mm
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 610 x610x69mm
Air speed :0.3-0.6m/s
Power: 220V/50HZ
Per-filter:450x450x21mm
Introduction:
Applications:
As demands of cleanliness with process of semiconductor or LCD manufacturer, you are able to choose the fittest filter of particle diameter, dust collection efficiency, etc. If you need the filter without B(Boron), We recommend PTFE(Poly Tetra Fluoro Ethylene)filter , that is made of material of membrane.If you must avoid DOP for testing filter, please inform us to test with silica without water or atmospheric air.
Operating features:
Illustration:
1: Plastic Handle 2: Fan 3: HEPA filter 4:Pre-filter 5:Control panel 6:Power cable
Technical Parameter:
|
MODEL |
KEL-FFU615 |
|
|
External size (mm) |
615x615x350mm |
|
|
Material |
Steel plate with painting/galvanized steel/aluminum/stainless steel |
|
|
Air flow(m3/h) |
500m3/h |
|
|
Air velocity (m/s) |
0.3/0.35/0.4/0.45/0.5m/s |
|
|
Pressure(pa) |
97(10mmAq) |
|
|
Control system |
1: Power on/off 2: Control air speed up/down |
|
|
HEPA FILTER |
Size(mm) |
615X610X69 |
|
Efficiency(%) |
99.995% @ 0.3um |
|
|
Pressure (pa) |
<220pa @ 0.45m/s |
|
|
Power supply |
220V/110V ,50/60HZ |
|
|
Power (w) |
110w |
|
|
Noise (Db) |
57db |
|
Customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
