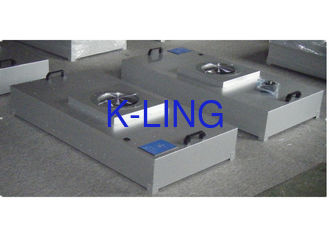

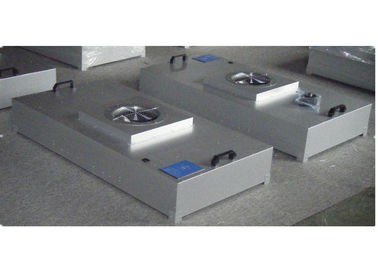

Low Noise DC Motorized FFU Fan Filter Unit FFU With High Efficiency HPEA Filter
Quicky Detail
Internal Size: 615x615x615mm
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 610 x610x69mm
Air speed :0.3-0.6m/s
Power: 220V/50HZ
Per-filter:450x450x21mm
Introduction:
FFU can be used in different levels of cleanroom and ranged variable upon the class. In the mean time,the
cleanroom can be built with the range of FFU in a strict environment. This product is made of metal which is
no gas pollutant release, low noise and low vibration and is also applicable to the other filter brands.FFU is

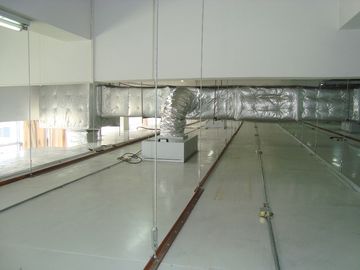

a high density cleanroom device which can be used in the industry such as the semicoductor or LCD manufacturing. Implanted in the ceilings it resolves the need for hundreds or thousands modules in a large cleanroom.
Operating features:
DC-powered unit has the following benefit and advantage
1.Energy saving as mentioned in energy saving comparision.
2.Low noisy level,it is at least 4dB lower per unit
3.Computer program,control whole system,zone,group or individual unit in one touch
4.Motor has longer life.
Illustration:
1: Plastic Handle 2: Fan 3: HEPA filter 4:Pre-filter 5:Control panel 6:Power cable
Technical Parameter:
|
MODEL
|
KEL-FFU615
|
|
External size (mm)
(WXDXH)
|
615x615x350mm
|
|
Material
|
Steel plate with painting/galvanized steel/aluminum/stainless steel
|
|
Air flow(m3/h)
|
500m3/h
|
|
Air velocity (m/s)
|
0.3/0.35/0.4/0.45/0.5m/s
|
|
Pressure(pa)
|
97(10mmAq)
|
|
Control system
|
1: Power on/off 2: Control air speed up/down
|
|
HEPA FILTER
|
Size(mm)
|
615X610X69
|
|
Efficiency(%)
|
99.995% @ 0.3um
|
|
Pressure (pa)
|
<220pa @ 0.45m/s
|
|
Power supply
|
220V/110V ,50/60HZ
|
|
Power (w)
|
110w
|
|
Noise (Db)
|
57db
|
Customer’s design is available.
Notes
1.To prevent motor overheating the installation of protective devices is recommended.
2.Special size available upon request.
3.Filter can be HEPA or ULPA .
4.Motor has overheat circuit protection
5.Control Box can be hand-controlled or computer program system control
6.Height in above specification doesn’t include filter
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
