Cleanroom Ceiling Terminal Hepa Filter Box Fan Air Purifier For Food Industrial

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Cleanroom Ceiling Terminal Hepa Filter Box Fan Air Purifier For Food Industrial

Cleanroom Ceiling Terminal Hepa Filter Box Fan Air Purifier For Food Industrial
Cleanroom Ceiling Terminal Hepa Filter Box Fan Air Purifier For Food Industrial

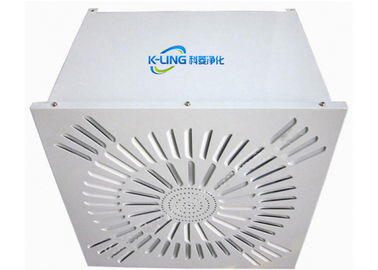

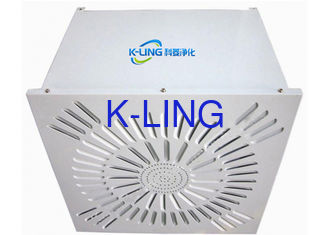

Large Image :  Cleanroom Ceiling Terminal Hepa Filter Box Fan Air Purifier For Food Industrial

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-610H
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 3000SetS/month
Detailed Product Description
Size: 680X680X500mm Filter Size: 640x610x220mm
Flange Size: 200x400mm Air Flow: 1000m3/h
Material: Steel With Power Coated (t=1.0mm) HEPA Filter: 99.995%@0.3um
High Light:

air filter box

,

duct filter box

Cleanroom Ceiling Terminal Hepa Filter Box Fan Air Purifier For Food Industrial





Quicky detail



Install Size: 680x985x500mm

Purification rank: Class100-300,000

HEPA filter efficiency:99.99%- 99.999%@0.3um

HEPA filter size : 610x610x220mm

Material : steel with power coated,





Performance :

HEPA terminal filter units for ceiling installation as final filters (last filter stage) and for air distribution in sensitive areas in clean room technology.Fitting of filter elements for the separation of suspended particles such as aerosols, toxic dusts, viruses, and bacteria from the supply and extract air



Applications:


HEPA filter box  for Air supply and exhaust in laboratories
HEPA Filter box  for operating rooms and sterile rooms
HEPA filter  box for electronic, sensitive mechanics, chemistry and food industries
HEPA filter box for film and sound band industries
HEPA filter box for exhaust for nuclear technology




Operating Features:

1 : The frame is advanced baking cold rolled sheet with surface static blasting
      painting treatment which can guarantee the air speed avoiding eddy flow.

 2 : Compact construction assures HEPA filter box advanced sealing performance.
       There are side air intake way and top air intake way available, the header
        is square or round.
 3 :  If the clean room designed to compact construction for the height strict,
       ceiling filter module is the best choose.
 4 :  Each HEPA filter box is individually tested via PSL particle, Using MPPS
       (DOP Test) laser particle counting device to measure overall efficiency of the filter,
       special requirement is available.


Parameter :

Model

Install size

Filter size

Flange size

Air flow

Tube on top/side

(BXAXH)mm

(H13)

(mm)

M3/h

KEL-320H

390x390x500

320X320X220

200x200/Ø300

 500

KEL-484H

554x554x500

484X484X220

200x320/Ø300

1000

KEL-610H

680x680x500

610X610X220

200x400/Ø300

1500

KEL-915H

680x985x500

610X915X220

200x500/Ø300

2000

KEL-1220H

    680x1290x500

610x1220x220

300x500/Ø300

3000

Customized design is available.



Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



--functional test and visual inspection

--electrical safety tests

--air velocity testing

--purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:



• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
