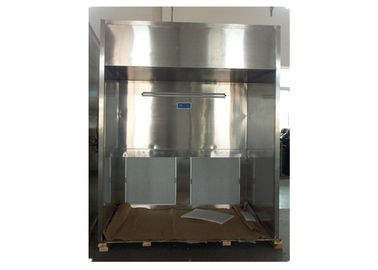

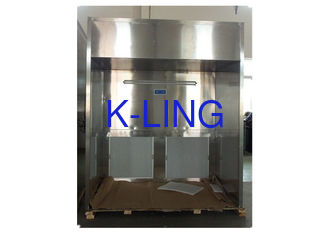

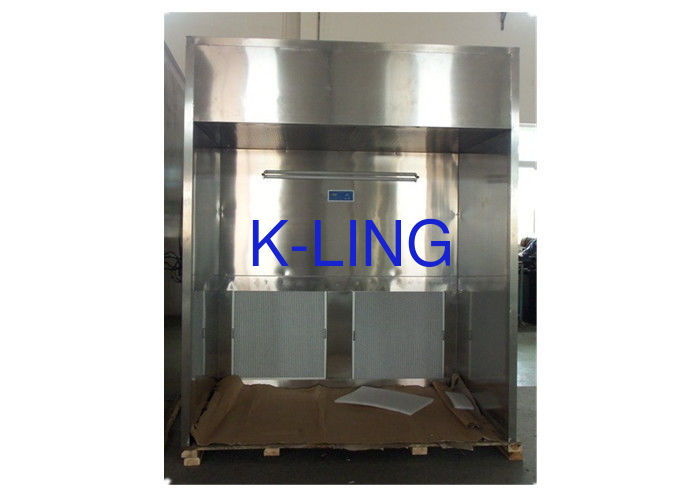

Electrical Safety Clean Room Booth 380V / 50hz , Vertical Dispensing DownFlow booth

Electrical Safety Clean Room Booth 380V / 50hz , Vertical Dispensing DownFlow booth
Electrical Safety Clean Room Booth 380V / 50hz , Vertical Dispensing DownFlow booth

Large Image :  Electrical Safety Clean Room Booth 380V / 50hz , Vertical Dispensing DownFlow booth

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DB2525
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
High Light:

pharmaceutical weighing booth

,

downflow booth

Electrical Safety Clean Room Booth 380V / 50hz , Vertical Dispensing DownFlow booth


Quicky Detail
External Size : 2600x2800x2400mm
Internal Size: 2500x2500x1950mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Air speed:0.3-0.6m/s
Power:380V/50HZ or 380V/60HZ


Introduction:

Vertical Dispensing  DownFlow booth provide containment by utilizing high velocity air to capture air borne dust particles. Control exposure risk to hazardous materials for a wide variety of equipment and processes. Protecting the operator during sensitive tasks, this complied with GMP practices.


Operating features:
 1:  Automatic changeable frequency system monitors the air velocity to ensure its stability in the
    working area.

2:  Differential pressure gauge is equipped to real-time monitor the filters.

3: Unique designed air duct effectively controls the noise.

4: Uniform flow design of main working area can protects the operators and prevent encironmental

     pollution and cross contamination of products.

5: Intelligent control mode and alarm system ensure the reliability of running.

6: Smooth transitions of wall and ground can eliminate the blind angle.

7: Humanized design simplifies the operation of all kinds of filters



Technical Parameter :

 Model

KEL-DB2525

External size(mm)

 2400x2800x2400mm

Internal size(mm)

2500X2500X1950mm

Cleanliness:

Class100

HEPA Filter

 99.995@0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .

Customer’s design is available.


Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


Why you choose K-LING Company ?

Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team


Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.

  After sales service:

• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.


Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
