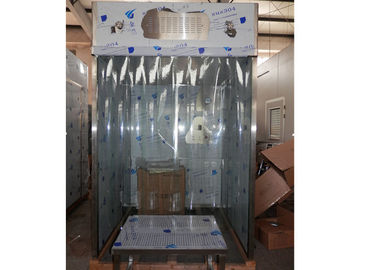

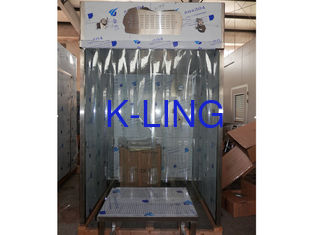

Pharmaceutical Weighing Booth With Pressure Gauge , Stainless Steel 201 / 304

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Pharmaceutical Weighing Booth With Pressure Gauge , Stainless Steel 201 / 304

Pharmaceutical Weighing Booth With Pressure Gauge , Stainless Steel 201 / 304
Pharmaceutical Weighing Booth With Pressure Gauge , Stainless Steel 201 / 304

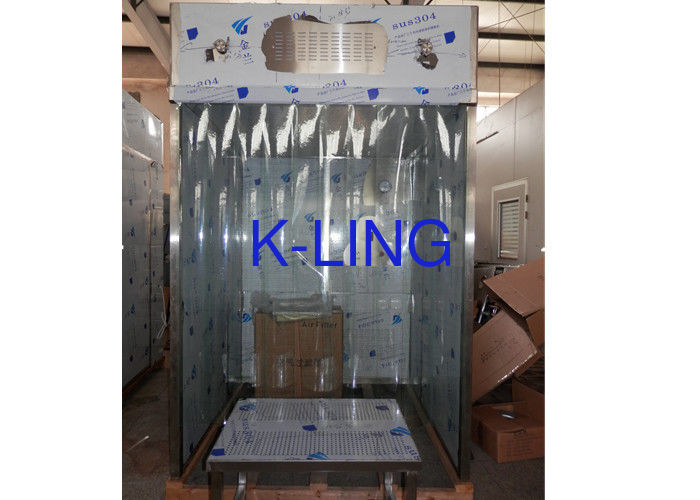

Large Image :  Pharmaceutical Weighing Booth With Pressure Gauge , Stainless Steel 201 / 304

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-DB1200
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 200Sets/month
Detailed Product Description
Other Name: Dispensing Booth & DownFlow Room Material: Stainless Steel 304
Air Speed Range: 0.3-0.6 M/s Speed Adjust: Frequency Speed Adjustable
Filteration Grade: HEPA + Secondary + Per-filter DOP Port: 1 Pcs
High Light:

pharmaceutical sampling booth

,

pharmaceutical weighing booth

Pharmaceutical Weighing Booth With Pressure Gauge , Stainless Steel 201 / 304




Quicky Detail


External Size : 1300x1500x2400mm
Internal Size: 1200x1200x1950mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Fan filter units size : 1175x615x350  2 sets
Air speed:0.3-0.6m/s
Power: 220V/50HZ


Introduction:



Dispensing booth is a personnel safety and protection facility which shall control the polluted air emission through, the special filter unit to keep the operator or environment away from its hazards.It can provide an environment for powder weighing.package and dust spills control and to prevent dust inhalation and avoid cross-contamination fo dust.



Applications:

subdivision of powder of liquids, charging and offloading materials to reactors, fluid bed dryers, granulators, filter dryers, glass ware skids and so on.


Operating features:



1: Modular. Easy-to clean rigid design with minimal joints
2: HEPA/ULPA Gel-seal down flow filter are replaceable from within the booth. Gel-seal is more reliable than conventional gasket seals
3: Voltage-compensating blowers ensure stable air flow.
4: Magnehelic Gauges provide convenient and reliable means for monitoring gauges air flow and filter condition.
5: Containment performance verified according to the ISPE good practice guide, assessing the particulate containment performance of pharmaceutical equipment.





Technical Parameter :



 Model

KEL-DB1200

External size(mm)

 1300x1500x2400

Internal size(mm)

1200X1200X1950

Cleanliness:

Class100

HEPA Filter

 99.995% @0.3um

Pre-filter

   75%@5um

Air velocity

  0.2-0.5m/s

Noise

57-65dB

Material

Stainless steel 201/304 or steel with power coated

Power

380V/50hz

Standard

(FS 209E)USA .

Customer’s design is available.



Factory test:


All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.


Factory test include:

-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.


   Why you choose K-LING Company ?




1. Superior Quality

Quality is our biggest concern. We are always striving
for quality improvement from the first beginning.

2. Competitive Price

Competitive price is one of our advantages compared to
others. We are always working hard to lower down the cost
while still improve or keep the quality.

3. Customer first service

Focus on customization, we provide the free design by our
designers. Reply with 24 hours if any questions and pack
in time for delivery.

4. All-in-one convenience

We are dedicated to give you all-in-one service. You just
tell us your demand, then we will take care of your demand,
design drawings, build the clean room and provide you best after sale.


5. Product diversification

We are not only undertake clean room construction, clean
booth construction, etc., but also an agent to export
accessories from other factory. You could always choice the
 suitable products in our company.



Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
