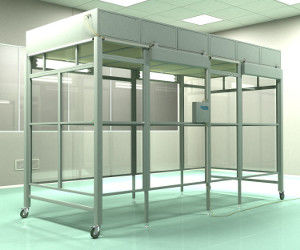

Industrial Laboratory Softwall Clean Room , PC Control Class 1000 Cleanroom
Quickly detail
External size : 3000x2000x2596mm
Internal Size: 2900x1900x2205mm
Purification rank: Class1000
HEPA filter efficiency: 99.999%@0.3um
Laminar flow: vertical
Air speed :0.3-0.6m/s
Power: 220V/50HZ or 110V/60HZ
Introduction :

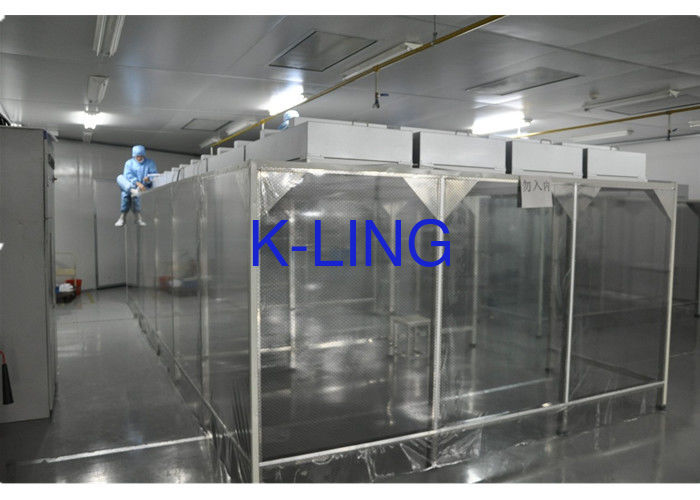

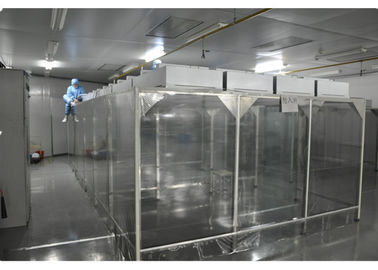

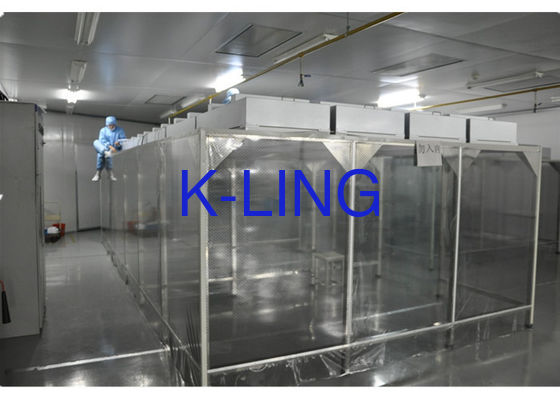

Softwall clean room provides a very wide variety of standard sizes and cleanliness levels and almost any custom configurations or applications you request. A soft wall clean shed, made of removable anti-static vinyl strip curtains, it is the most cost-effective equipments available for any zone, needing a special filtration.which are of a modular build format, allows ease of installation and as a result to provide less downtime.
Application :
it is usually used in dispensing, sampling, and off-loading areas within pharmaceutical,
chemical and bio-chemical industries.The advantages of soft wall clean shed include
ease of access and ensuring the clean zone staying within specific cleanliness level need.
Operating features
1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated
steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with
an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending
ceiling supports
3: The PVC anti-static curtain door allowing for easy passage of material and personnel in and
out of the clean area. The curtain terminated at a specific distance above the floor to allow
for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating
costs and has extremely low noise and vibration levels, improving the working conditions
in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation
technique to maximize surface area improves efficiency and extends the filter life.
Illustration:
1: The frame is steel cube with milk powder coated.
2: M support leg
3: The wall made from clarity synthetic glass.
4: FFU control box.
5: FFU with HEPA filter and pre-filter
6: Purification lamp
7: PVC strip curtain
8: Purification rank class100-1000 (FS209E Stander)
Technical Parameter:
|
MODEL
|
KEL-LFB series
|
|
Ex size (mm)
(W*D*H)
|
3000X2000X2596mm
|
|
In size (mm)
|
2900x1900x2205mm
|
|
Purification rank
|
Class10-300,000(FS209E USA)
|
|
HEPA filter
|
Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
|
|
Pre-filter
|
Efficiency : 85% @ 5um
|
|
Control system
|
PC control system / promised speed by control box
|
|
Pressure Gauge
|
American Dywer pressure
|
|
Noise
|
<50-55 dB (test point distance is 1m)
|
|
Air velocity
(m3/h)
|
0.2-0.5m/s Adjustable (test point distance is 30cm)
|
|
Frame material
|
stainless steel/steel with power coated/Cast aluminum profile
|
|
Wall frame
|
Tempered glass / PVC anti-static curtain (option)
|
|
Fan
|
EBM Fan /Taiwan fan/ Domestic fan (option)
|
|
Power suppler
|
AC110/220v 50HZ/60HZ
|
Customer’s design is available.
Why you choose K-LING Company ?
1. Superior Quality
Quality is our biggest concern. We are always striving
for quality improvement from the first beginning.
2. Competitive Price
Competitive price is one of our advantages compared to
others. We are always working hard to lower down the cost
while still improve or keep the quality.
3. Customer first service
Focus on customization, we provide the free design by our
designers. Reply with 24 hours if any questions and pack
in time for delivery.
4. All-in-one convenience
We are dedicated to give you all-in-one service. You just
tell us your demand, then we will take care of your demand,
design drawings, build the clean room and provide you best after sale.
5. Product diversification
We are not only undertake clean room construction, clean
booth construction, etc., but also an agent to export
accessories from other factory. You could always choice the
suitable products in our company.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
