Product Details:
|
Name: | MERV 15 Rigid V Bank Filter | Size: | 592x592x292MM |
---|---|---|---|
Efficiency: | MERV15 | Application: | Air Handing Units |
Other Name: | Fine Dust Air Filter | Pack: | 3 Or 4 PACK |
Frame: | Plastic Frame | Filtration Grade: | Medium Filter |
Usage: | Air Clean | Type: | V-Bank |
Media: | Pp Or Fiberglass Filter Paper | Material: | Plastic Frame |
Highlight: | industrial air filters,home air filters |

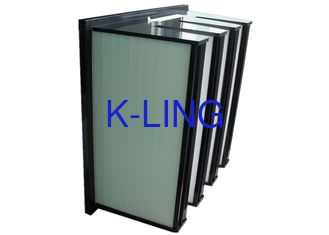

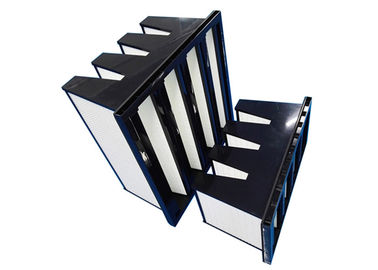

MERV 15 V Bank Rigid Fine Dust Air Filter For Air Handing Units
Quickly detail
Media: Lydall glass fiber or PP media
Frame: Aluminum /Plastic
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x292
Pack: 4 or 5 packs
Resistance:<30-50pa
Company information :
Keling Purification Technology Co., Ltd engaged in air purification field for many years, that is Professional manufactory with research and development, produce, sales of air purification equipment and HVAC air filter. Such as mini-pleats ULPA/HEPA air filter, HEPA filter with clapboard filter, high-humidity HEPA air filter, high temperature-resistance filter, rigid air filter, compact air filter, fine dust air filter, secondary pocket air filter, primary pocket air filter, V-cell air filter, pre-filter, active carbon air filter, v-bank air filter with big air volume, bag air filter, panel air filter, z-line air filter and Grease filter and so on.
Characteristics:
1: The V bank rigid finedust air filter use for filter more than 0.5um particles and dust in HVAC air conditional system ,that particular design for HVAC project at low resistance with big air volume.
2: The filter media adopt the pp media or ultra-thin glass fiber with high dust holding capacity , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .
3: The polypropylene plastic frame can be Incineration when use out .
4: the filter with flange can replace by pocket air filter.
The sealant around the media so that the air filter without any air leaking
5: the V bank rigid finedust air filterefficiency range: F6,F7, F8,F9(EN779).
Dimension and parameter:
Dimension (W*H*D) (mm) |
Pack |
Air flow (M3/h) |
Media area (m2) |
Holding dust(g) |
Primary resistance (by0.5m/s) |
Final resistance |
Efficiency (0.3um) |
287X287X292 |
2 |
900 |
4.63 |
280 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X592X292 |
3 |
2850 |
15 |
900 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X592X292 |
4 |
3800 |
20 |
1200 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X490X292 |
4 |
3100 |
16.44 |
1000 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X287X292 |
4 |
1750 |
9.26 |
550 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
Customized size is available .
Material and operation conditions:
Media |
Glass fiber and PP media |
Sealant |
PU Sealant |
Frame |
Plastic /Galvanized/Aluminum/SUS frame |
Media spacer |
PU hot glue |
Gasket |
EVA, or Neoprene gasket |
Efficiency |
65-95% MERV13,MERV14,MERV15,MERV16 |
Max temperature |
70°c |
Max humidity |
100% |
