Product Name: | Mini Pleated HEPA Filter | Filter Type: | V Bank Filter |
---|---|---|---|
Characteristic: | Big Air Volume | Efficiency: | H12/H13/H14 |
Weight: | According To Size | Dimension: | 592x592x292mm |
Porosity: | 0.3um | Frame: | Aluminum Alloy |
Usage: | Air Purification Or Filtration | ||
Highlight: | home air filters,commercial air filters |

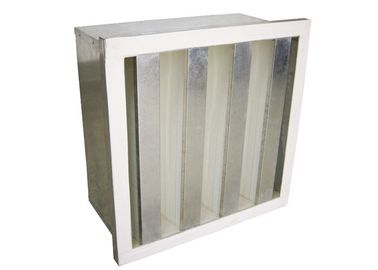

Commercial Mini-Pleat HEPA Filter V Bank Air Filter F7 / F8 With Big Air Volume
Quickly Detail
Media: glass fiber or PP media
Frame: Galvanized frame
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x292mm
Pack: 5 packs
Resistance:<60-120pa
Company information :
Keling Purification Technology Co., Ltd engaged in air purification field for many years, that is
Professional manufactory with research and development, produce, sales of air purification equipment and HVAC air filter. Such as mini-pleats ULPA/HEPA air filter, HEPA filter with clapboard filter, high-humidity HEPA air filter, high temperature-resistance filter, rigid air filter, compact air filter, fine dust air filter, secondary pocket air filter, primary pocket air filter, V-cell air filter, pre-filter, active carbon air filter, v-bank air filter with big air volume, bag air filter, panel air filter, z-line air filter and Grease filter and so on.
Characteristics:
1: The v-bank air filter is the finally filtration in air conditional system that use for filter the particles more than 0.3um. Dedicated design the big air volume at low resistance.
2: High dust holding capacity: mini-pleats type , The filter media adopt the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , the media area can be use in completely, this insure the high dust holding capacity .
3: High air volume: compare with other HEPA filter, it loss more less media area at same air flow. This not only reduce the operate cost but also the time and space.
4:v-bank Compact air filter with metal frame, we can make it with flange or without it for your choose.
5: Laser to scan the each air filter one by one.
6: The V-bank air filter efficiency range: H10, H11,H12, H13, H14
99.9%-99.9995%@0.3um (EN1822).
7: Each air filter with test report accompany
Dimension and Parameter:
Dimension (W*H*D) (mm) |
pack |
Air flow (M3/h) |
Media area (m2) |
Holding dust(g) |
Primary resistance (by0.5m/s) |
Final resistance |
Efficiency (0.3um) |
287x287x292 |
2 |
700 |
4.45 |
330 |
<200 |
400pa- 600pa |
>99.99% H13-H14 |
592x592x292 |
3 |
2050 |
16 |
1000 |
<200 |
||
592x592x292 |
4 |
2700 |
21 |
1320 |
<200 |
||
592x490x292 |
4 |
2300 |
18 |
1100 |
<200 |
||
592x287x292 |
4 |
1350 |
10 |
650 |
<200 |
||
592x592x292 |
5 |
3450 |
27 |
1650 |
<200 |
||
592x490x292 |
5 |
2850 |
22 |
1370 |
<200 |
||
592x287x292 |
5 |
1700 |
14 |
1820 |
<200 |
||
610x610x292 |
5 |
3550 |
28 |
1700 |
<200 |
||
610x305x292 |
5 |
1800 |
14.4 |
870 |
<200 |
Customized size is available
Material and operation conditions:
Media |
Glass fiber and PP media |
Sealant |
PU Sealant |
Frame |
Plastic /Galvanized/Aluminum/SUS frame |
Media spacer |
PU hot glue |
Gasket |
EVA, or Neoprene gasket |
Efficiency |
65-95% F6-F9 |
Max temperature |
70°c |
Max humidity |
100% |
