Product Details:
|
Products Name: | Granular Activated Carbon Filter | Filter Type: | Box Type Or V Bank |
---|---|---|---|
Size: | 610x610x292mm | Application: | Smoking Room |
Usage: | Odor Removale | Color: | Black |
Frame: | Galvanized Frame | Efficiency: | 95% Rate For Odor |
Media: | Granular Active Carbon | Warranty: | 1 Year |
Condition: | New | ||
Highlight: | home air filters,commercial air filters |

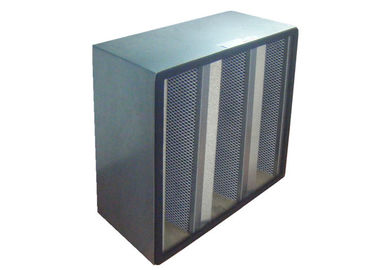

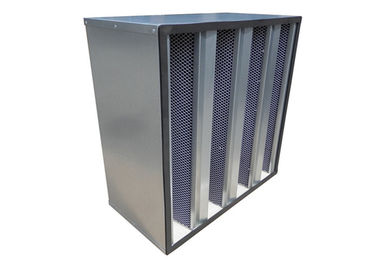

V Bank Granular Activated Carbon Panel Air Filter Hvac For Smoking Room
Quickly Detail
Media: Granular Actived Carbon
Frame: Aluminum
Filter size: 592x592x292
Pack: 4 or 3 packs
Resistance:<30pa
Peculiar smell Rid of rate: 95%
Performance:
Big air volume, easy for installation, Excellent Absorption for get rid of the harmful gases, High content active carbon, Long time use.
Applications area:
It widely use for central air conditional, central ventilation system and high pollution concentrations occasion.
Characteristics:
1: This composed by some pieces activated carbon panel air filter.
2: this air filter filled with granular activated carbon or coconut shell broken carbon, packed with black color non-woven, protection by the metal screen with power coated.
3: it adopted V type structure and use the AB glue for prevent the air leaking.
4: The carbon content in a very high rate, this upgrade the absorption performance
and prolong the use life.
Dimension and parameter:
Dimension (W*H*D) (mm) |
carbon content (kg) |
Peculiar smell Rid of rate |
Packs |
Primary resistance (by0.5m/s) |
Air flow (M3/h) |
592X592X292 |
12.3 |
>95%
|
4 packs |
<200pa |
1550 |
592X592X292 |
27.1 |
3500 |
|||
592X490X292 |
22.2 |
2800 |
|||
592X287X292 |
13.8 |
1800 |
|||
287X592X292 |
28.9 |
3700 |
|||
592X490X292 |
23.9 |
3100 |
|||
592X287X292 |
17.3 |
2250 |
|||
592X592X292 |
36.1 |
4650 |
|||
490X592X292 |
28.9 |
3850 |
Customized size is available.
Material and operation conditions:
Media |
Granular actived carbon |
Sealant |
PU Sealant |
Frame |
Galvanized/Aluminum/SUS frame |
Gasket |
EVA, |
Efficiency |
65-95% F6-F9 |
Max temperature |
70°c |
Max humidity |
80% |
