Product Details:
|
Products Name: | V Bank Filter | Dimension: | 592x592x292mm |
---|---|---|---|
Frame: | ABS Plastic Frame | Weight: | Light Weight |
Warranty: | One Year | Construction: | V Bank Filter |
Porosity: | 0.3um | Medium Mateiral: | FiberGlass |
Condition: | New | ||
Highlight: | industrial air filters,home air filters |

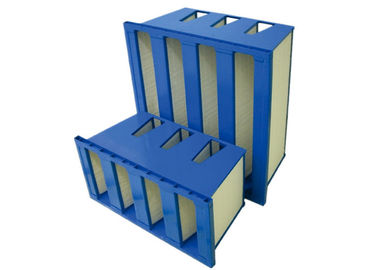

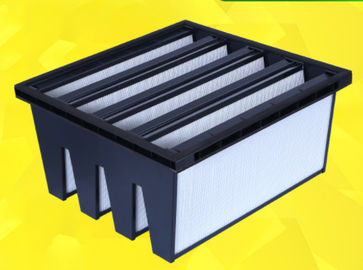

Portable MERV 13 V - Cell V Bank Filter Air Purifier , ABS Plastic Frame
Quickly Detail
Media: Lydall glass fiber
Frame: ABS Plastic
Filter efficiency: MERV13,MERV14,MERV15,MERV16
Filter size: 592x490x292mm
Pack: 4 packs
Primary Resistance:80pa
Performance:
Big media area, long time use life, big air volume, low resistance, light weight and easy install .
Applications area:
V- Cell air filter widely use for medium filtration in industry and commercial field.That is medium filter in clean room HVAC system.
Dimension and parameter:
Size |
Unit |
592x490x292mm |
Pack |
V |
4V |
Media area |
Sqm |
11.5 |
Average Efficiency |
MERV |
13 |
Normal Air flow rate |
m³/h |
2000 |
Max. Air flow |
m³/h |
2500 |
Initial pressure drop |
Pa |
75 |
Recommended final pressure drop |
Pa |
300 |
Dust retention capacity |
g |
450 |
Customized size is available .
Material and Operation Conditions:
Media |
Glass fiber and PP media |
Sealant |
PU Sealant |
Frame |
Plastic /Galvanized/Aluminum/SUS frame |
Media spacer |
PU hot glue |
Gasket |
EVA, or Neoprene gasket |
Efficiency |
65-95% F6-F9 |
Max temperature |
70°c |
Max humidity |
100% |
