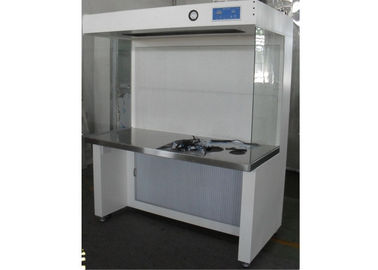

Lab Vertical Laminar Flow Cabinets Workstation , ISO Class8 Laminar Flow Clean Room

Lab Vertical Laminar Flow Cabinets Workstation , ISO Class8 Laminar Flow Clean Room

Quicky Detail

External size:  1200x850x1580mm

Internal Size:  1180x600x650mm

Purification rank: Class100

HEPA filter efficiency:99.99%- 99.999%@0.3um

HEPA filter size : 1170x610x69

Air speed :0.3-0.6m/s

Power: 220V/50HZ

Introduction:

Vertical laminar flow bench filtered air is passed through the main chamber of the flow bench in a vertical laminar air stream before being of the clean bench, it is designed for larger –scale process protection in industry application typically requiring multiple units connected in an assembly line configuration, usually it is placed within an ISO class8 clean room to provide an ultra-clean environment directly at the process level.

Applications:

clean rooms, electronics assembly, semiconductors, pharmaceutical .aerospace and medical devices industries, mycology and food microbiology, plant and mammalian Cell culture, applications benefiting from the isolated work surface frames design which virtually eliminates vibration.

Operating features:

1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.

2: LED control board with CE remark, low operating noise levels

3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.

Long –life HEPA air filter for supply air flow.

4: American Dwyer pressure remind of you replace the HEPA filter in regular.

Illustration:

1: Pre-Filter      2 :  Fans      3:  Control board    4:  Amercian Dwyer pressure

 5: HEPA/ULPA air filter      6: lamp          7: Socket                8: Glass

 9 : SUS table board      10: wheel        11: Leg

Technical Parameter

  Customer’s design is available.

Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)

Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.

Why you choose K-LING Company ?

Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team

Punctual delivery time:

• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
