Product Details:
|
Name: | Laminar Flow Cabinet | Other Name: | Clean Bench |
---|---|---|---|
Material: | Steel With Power Coated | Size: | 1200x600x600mm |
Function: | 100% Exhaust Air Outlet | Control System: | Microprocessor Control |
HEPA Filter: | 99.99%@0.3um | Condition: | News |
Guarantee Time: | 12month | Air Flow Type: | Vertical Air Flow |
Applcation: | Biology Laboratory | ||
Highlight: | laminar air flow hood,laminar air flow equipment |

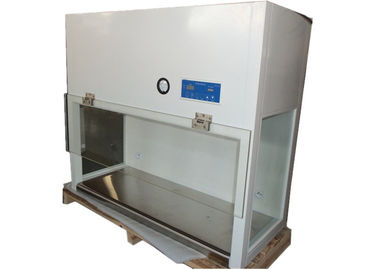

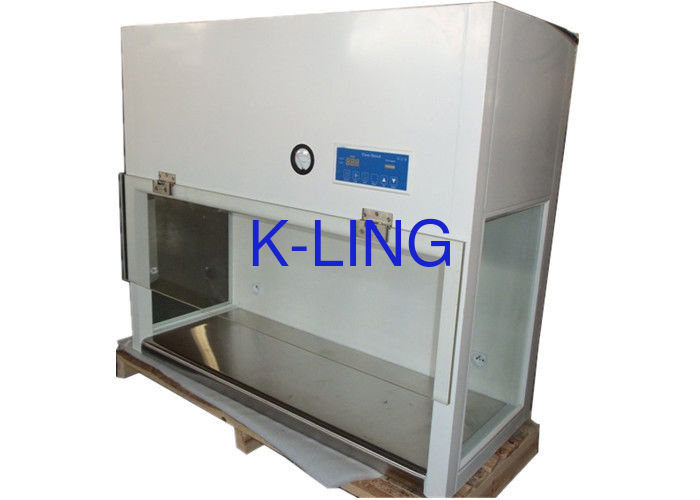

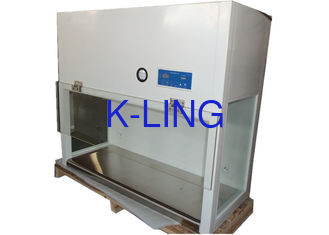

Pharmaceutical Vertical Laminar Flow Equipment , 110v / 60hz Laminar Flow Chamber
Quicky Detail:
External size: 1200x700x1150mm
Internal Size: 1000x600x650mm
Purification rank: Class100
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 920x610x69
Front of the clean bench with a glass
Air speed :0.3-0.6m/s
Power: 110V/60HZ or 220V/50HZ
Introduction:
Vertical ultra Laminar flow clean cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and keep under constant positive pressure in order to prevent the infiltration of contaminated room air.Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
Applications:
The field of protection of the biotechnology, pharmaceutical, life sciences and precision electronic product
Operating features:
1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.
2: LED control board with CE remark, low operating noise levels
3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.
Long –life HEPA air filter for supply air flow.
4: American Dwyer pressure remind of you replace the HEPA filter in regular.
5: Comply with Australia EN12469 and the European Union AS1386.5 standard, clean grade reach
Illustration:
1:Pre-Filter 2: Fans 3: HEPA filter 4: Control board 5: Socket
6:SUS table 7:Light 8: Glass
Technical Parameter
MODEL |
KEL -VCB-2-L |
||
External size (mm) (WXDXH) |
1200x700x1150mm |
||
Work zone (mm) (WXDXH) |
1000x650x600mm |
||
Purification rank |
FS209E 100Rank |
||
Rating airflow(m3/h) |
1800m3/h |
||
Filtration efficiency |
More than 99.99%@0.3um H13-H14 |
||
Average wind speed |
0.3-0.6m/s |
||
Intensity of illumination |
>300lx |
||
pressure gauge |
America Dwyer pressure watch 1 pcs |
||
UV Light |
1 pcs |
||
Fluorescent lamp |
30Wx1 |
||
Material (Option) |
1:Entirety Sus201/304. 2: External is steel with power coated, Internal is SUS304 4: External is steel with power coated. Internal is SUS301 |
||
Power |
290w | ||
Noise |
<65dB |
||
Power supply |
AC 110V/60HZ |
Customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
