Semiconductor Cleanroom Pass Box , Wall Mounted Pass Thru Box 1mm / 1.2mm

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Semiconductor Cleanroom Pass Box , Wall Mounted Pass Thru Box 1mm / 1.2mm

Semiconductor Cleanroom Pass Box , Wall Mounted Pass Thru Box 1mm / 1.2mm
Semiconductor Cleanroom Pass Box , Wall Mounted Pass Thru Box 1mm / 1.2mm

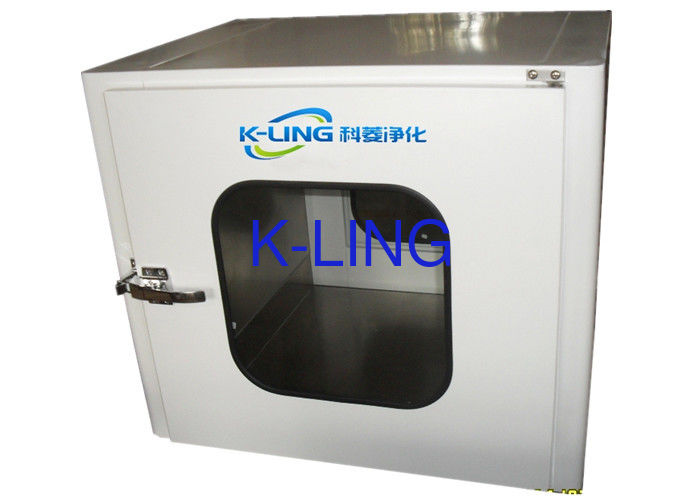

Large Image :  Semiconductor Cleanroom Pass Box , Wall Mounted Pass Thru Box 1mm / 1.2mm

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-PB900
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Set/month
Detailed Product Description
Highlight:

clean room pass through box

,

cleanroom pass through chambers

Clean Room Wall Mounted Pass Thru Box For Semiconductor Industry



Quick Detai :

External size : 1100x900x990mm

Internal size : 900x900x900mm

Interlocker : Mechanical or electronic

Material: inside is SUS304/201.  Outside is steel with power coated

Material thickness : 1mm/1.2mm

UV Light : 1 pcs

Power: 220V/50HZ or 220V/60HZ


Introduction:


The pass box is a clean room auxiliary equipment, its function is to purify the goods pass the buffer between indoor and outdoor clean area to prevent items due to the pass to open the door and destroyed the clean room air and chamber pressure, more can reduce the operating personnel move to prevent the entry of the dust of the outer region, the stability of the clean room.

k-ling company transfer window:   wind leaching the transfer window, electronic interlocking transfer window, landing the transfer window, tainless steel transfer window, and biological transfer window. 304 stainless steel mechanical interlock transfer window, cold-rolled plate spray mechanical interlocking pass the window Air shower pass window.


Three types window for your choose :

 A: Electronic interlock transfer window
 B: Mechanical interlock transfer window
 C: Self purification transfer window



Applications:

micro-electronics, laboratory, national defense, precise instrument and gauges, bio-pharmaceuticals, opto-electronics field.



Features:

1. Inside and outside the cabinet with stainless steel (SUS304 #) or cold-rolled plate spray.
2. Mechanical or electrical interlock
3. The glass window
Optional accessories:
1. An electronic interlocking with buzzer alarm device
2. Indicator: clear instructions to its working condition
3. Light: ultraviolet sterilization lamps


Technical Parameter:


      MODEL

  KEL-PB900

External size (mm)
(WXDXH)

1100x900x990

Internal size (mm)
(WXDXH)

900x900x900

Material

1: Entirety Sus201/304.
2: External is steel with power coated, Internal is SUS304.
3: External is steel with power coated. Internal is SUS301.

Material thickness

1.0/1.2/1.5mm

Glass window size

600x600x8

Interlock

Mechanical or electronic for your choose



Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.




Why you choose K-LING Company ?



Professional sales:



• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.





After sales service:



• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
