Stainless Steel 304 Cleanroom Pass Through Chambers For Chemical Laboratory

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

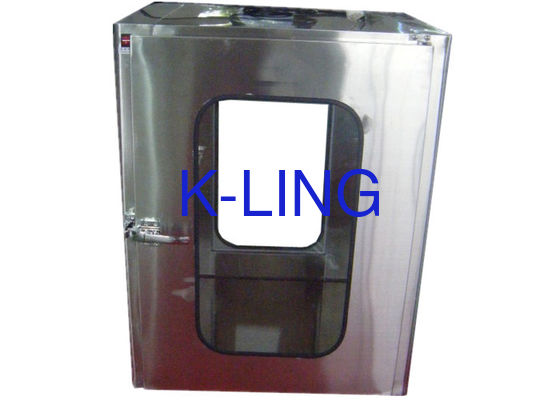

Stainless Steel 304 Cleanroom Pass Through Chambers For Chemical Laboratory

Stainless Steel 304 Cleanroom Pass Through Chambers For Chemical Laboratory
Stainless Steel 304 Cleanroom Pass Through Chambers For Chemical Laboratory

Large Image :  Stainless Steel 304 Cleanroom Pass Through Chambers For Chemical Laboratory

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-PB700
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Set/month
Detailed Product Description
High Light:

Pass Thru Box

,

cleanroom pass through chambers

Stainless Steel 304 Cleanroom Pass Box For Chemical Laboratory



Quick Detai :


External Size: 900x700x790mm

Internal size :700x700x700mm

Interlocker : Mechanical or electronic
Material: inside is SUS304/201. Outside is steel with power coated
Material thickness : 1mm/1.2mm
UV Light : 1 pcs
Power: 220V/50HZ


Introduction:


The cleanroom pass box is one kind of facilities, which located on partition walls of clean room and its function shall be a buffer area for transferring goods between inside and outside of clean room. So that, it can prevent any disturbance of airflow and air pressure in clean room, which caused by the door opening for goods transferring.Furthermore, it can reduce the time for operators, moving in and out, to prevent any dust coming from the out regions.That’ s why there is one interlock guard system controlled the inlet and the outlet of UV sterilizer not be opened at the same time, in order to prevent the cross contamination.



Standard features of cleanroom pass box


Mechanical/Automatic interlocking for the doors
Swing type doors with view panels
Door open indicator
Optional UV lamp


Applications:

micro-electronics, laboratory, national defense, precise instrument and gauges, bio-pharmaceuticals, opto-electronics field.


operating features :

1: it is manufactured for the most demanding controlled environment applications.
2: All components are designed for maximum chemical resistance and enhanced durability for a longservice life.
3: It is constructed of stainless steel inside, making the work zone easy to clean and endurable.
4:Mechanical and electric interlock are reliable, maintenance-free, maintains clean room integrity by        preventing both door from being opened and the same time.


Technical Parameter:


      MODEL

  KEL-PB700

External size (mm)
(WXDXH)

950x750x840mm

Internal size (mm)
(WXDXH)

700x700x700mm

Material

1: Entirety Sus201/304.
2: External is steel with power coated, Internal is SUS304.
3: External is steel with power coated. Internal is SUS301.

Material thickness

1.0/1.2/1.5mm

Glass window size

480x480x8mm

Interlocker

Mechanical or electronic for your choose



Factory test:

All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)


Warranty:

Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.


Consumable parts illustration:

1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.

2: HEPA filter: each one should be replacement in each half and one years.




Why you choose K-LING Company ?


A. Superior Quality

Quality is our most concern. We are always striving  for quality improvement from the first beginning.


B. Competitive Price

Competitive price is one of our advantages compared to others. We are always working hard to lower down the cost while still improve or keep the quality.

C. Customer first service

Focus on customization, we provide the free design by our designers. Reply with 24 hours if any questions and pack in time for delivery.

D. All-in-one convenience

We are dedicated to give you all-in-one service. You just tell us your demand, then we will take care of your demand, design drawings, build the clean room and provide you best after sale.


E. Product diversification

We are not only undertake clean room construction, clean booth construction, etc., but also an agent to export accessories from other factory. You could always choice the suitable products in our company


Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
