Product Details:
|
Highlight: | clean room air filter,hepa high efficiency particulate air filter |
---|

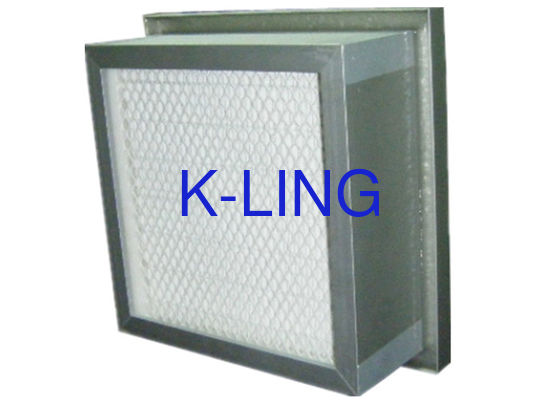

Industrial Clean Room HEPA Air Filter , H13 Aluminum Frame Commercial Air Filters
Quicky Detail
Media: Glass fiber
Frame: Aluminum
Gasket: Fluid Sealant
HEPA air filter efficiency: H10 - H14
HEPA filter size: 510x510x90
Pleat High : 96mm
Pleats Distance : 7-8PPI
Resistance:<200pa
Performace:
High purification rank, low resistance, easy install and excellent sealant effect
Applications area:
This air filters design for pharmaceutical and biotech industry applications.
Characteristics:
1: It is the finally filtration in clean room that use for filter the particles more than 0.3um
2: The media adopt the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .
3: The anodized aluminum frame so that it is anticorrosion in long time. The sealant around the media so that the air filter without any air leaking ,both side with screen.
4 The air filters can be tested and easily replaced without disturbing the module housing or risking bypass leakage.
5: the downstream flange channel full with fluid gel so that increase the sealant. When the filter is installed, a knife edge on all four side of the housing penetrates the channel of gel to form an airtight seal. This gel is non-Newtonian liquids that with non-volatile and toxic, tasteless, endure acid and so on.
6: laser to scan the each air filter one by one.
7: the HEPA air filter efficiency range: H13, H14 99.97%-99.999%@0.3um (EN1822).
Dimension and parameter:
Dimension (W*H*D) (mm) |
Air flow (M3/h) |
Media area (m2) |
Holding dust(g) |
Primary resistance (by0.5m/s) |
Final resistance |
Efficiency (0.3um) |
346x346x90 |
400 |
4.16 |
250 |
<200pa |
400pa- 600pa |
>99.99% H13-H14 |
510x510x90 |
90 |
9.42 |
570 |
<200pa |
||
636x636x90 |
1450 |
14.9 |
900 |
<200pa |
||
941x636x90 |
2150 |
21.22 |
1330 |
<200pa |
||
1246x636x90 |
2850 |
29.33 |
1760 |
<200pa |
Customized size is available.
Material and operation conditions:
Media |
Glass fiber media |
Sealant |
fluid sealant |
Frame |
Aluminum frame |
Gasket |
/ |
Pleat spacer |
EVA hot glue |
Efficiency |
99.97%-99.999% H13-H14 |
Max temperature |
70°c |
Max humidity |
80% |
Frame |
90, 110,120mm |
