Highlight: | clean room air filter,hepa high efficiency particulate air filter |
---|

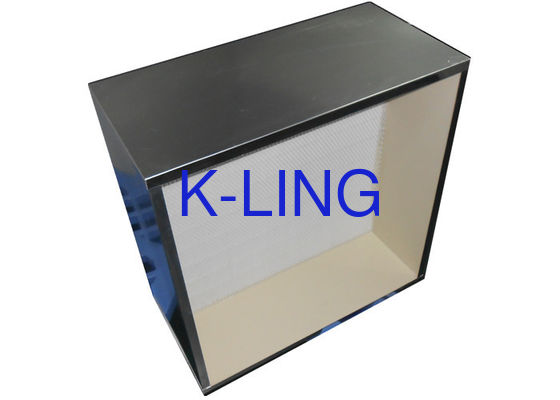

Glass Fiber H14 Compact HEPA Air Filter For Filtration Industry
Quicky Detail
Media: Glass fiber
Frame: Aluminum/Galvaniz
Gasket: PU Foam or EVA Gasket
HEPA filter efficiency:99.99%- 99.999%@0.3um
H10 - H14
HEPA filter size: 610x610x292
Pleats High : 96mm
Pleats Distance: 7-8PPI
Resistance:<200pa
Performance:
High purification rank, low resistance, super-thin and light weight, easy install and .
Fine uniformity of air velocity
Applications area:
HEPA air filter widely use for electronic, pharmacy, food, semiconductor,Atomic force, precise instrument and cosmetics field and so on, which occasional request high purification rank.
Characteristics:
1: The Mini-pleats HEPA air filter is the finally filtration in clean room that use for filter the particles more than 0.3um.
2: The filter media adopt the ultra-thin glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .
3: It is use patent technology to ensure the fully use of V-type passage.
4.Using the special seamless sealing technology,the effect is lasting for a long time,the airflow is even.
5: The anodized aluminum frame so that it is anticorrosion in long time.
6: The sealant around the media so that the air filter without any air leaking
7: the both side of air filter is metal screen with power coated so that the media without any damage.
8: laser to scan the each air filter one by one,
Dimension and parameter:
Dimension | Air flow | Media area | Holding dust(g) | Primary resistance | Final | Efficiency |
305x305x292 | 200 | 1.8 | 100 | <200pa | 400pa- | |
484x484x292 | 500 | 4.6 | 300 | <200pa | ||
610x610x292 | 800 | 7.5 | 450 | <200pa | ||
915x610x292 | 1200 | 11.2 | 700 | <200pa | ||
1220x610x292 | 1600 | 14.9 | 900 | <200pa |
Customized size is available
Material and operation conditions:
Media | Glass fiber media |
Sealant | Hot melt glue , Polyurethane glue |
Frame | Plastic /Galvanized/Aluminum/SUS frame |
Gasket | EVA, PU foam, Neoprene |
Pleat spacer | EVA hot glue |
Efficiency | 99.97%-99.999% H13-H14 |
Max temperature | 70°c |
Max humidity | 80% |
Frame | 28-96mm |
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
