| Name: | Automatic Air Shower Room | Packing Size: | 1400x1200x2350mm |
|---|---|---|---|
| Air Speed: | More Than 22m/s | Floor: | Sus304 Floor Board |
| Purfication Rank: | Class 100 | Capacity: | One Or Two Person |
| High Light: | semiconductor clean room,lab clean room |
||
CUSTOMIZED DESIGN IS AVAILABLE

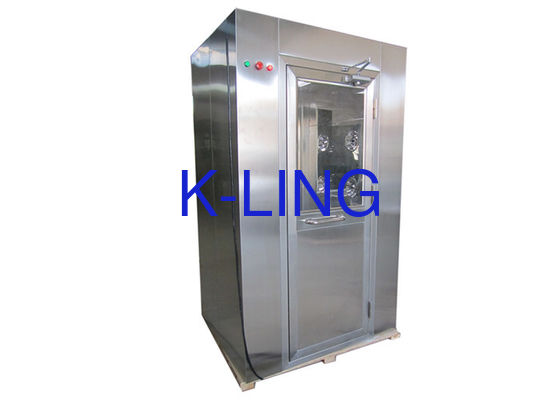

1 To 2 Person Standard Stainless Steel Air Shower Cleanroom Equipments
General Trade Information:
Brand: HAOAIRTECH Model number: HA-AS1300P1 Series
Material: inside and outside is stainless steel304 (t=1.0mm) OEM /ODM: Yes
Certificated: CE and Rosh Start port: Guangzhou
Delivery time: 8 working days after we get the deposit. MOQ: 1sets
Country of Original: China Supply ability: 50 set/one month
Payment term: T/T , L/C , Western union , Application: Worker in Clean room
Product Features:
External Material: stainless steel304 (t=1.0)
Inside Material: stainless steel304 (t=1.0)
Sus nozzle: 16pcs,32PCS, 48pcs.
Blowing way: 3 side (left, right and top)
Air speed: more than 25m/s
Door: Electric Interlocking in both side.
Spefication:
| MODEL | HA-AS1300P1 | HA-AS1300P2 | HA-AS1300P3 | |
External size (mm) | 1300x1000x2180mm | 1300x2000x2180mm | 1300x3000x2180mm | |
Work zone (mm) | 800x930x1910mm | 800x1930x1910mm | 800x2930x1910mm | |
| Persons per cycle | 1-2 person | 2-4 person | 3-6 person | |
Material | 1:Entirety Sus304.(T=1.0/1.2/1.5mm) | |||
| Control system | 1: Control system with LED display for the shower time. | |||
| The power of fan | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | 380V/50HZ/0.75KW | |
| Air flow of fan(m3/h) | 1500 | 1500 | 1500 | |
| Fan run (r/min) | 2800 | 2800 | 2800 | |
| Nozzle in stain less steel | 16 pcs | 32 pcs | 48pcs | |
| Wind speed(m/s) | >25m/s | |||
| Noise level(dB) | <75dB | |||
| HEPA FILTER | Size(mm) | 630X630X80mm | 630X630X80mm | 630X630X80mm |
| Efficiency (%) | 99.995% @ 0.3um mini-pleats HEPA Air Filter | |||
| Air velocity | 1000(m3/h) | |||
| Initial resistance(pa) | <180pa | |||
| Pre-filter | Size(mm) | 775x380x17 | 775x380x17 | 775x380x17 |
| Efficiency (%) | 75% @ 0.5um | 75% @ 0.5um | 75% @ 0.5um | |
| G3 | G3 | G3 | ||
| resistance(pa) | <30 Pa | <30Pa | <30 Pa | |
| parameter | Power supply | 380v/50HZ 3P | 380v/50HZ 3P | 380v/50HZ 3P |
| Net power(kw) | 1.5 kw | 3kw | 4.5 kw | |
| packing size (mm) | 1350x1200x2250mm | 1350x2200x2250mm | 1350x3200x2250mm | |
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | |||
| Weigh | 320kgs | 650kgs | 960kgs | |
Detail :
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
