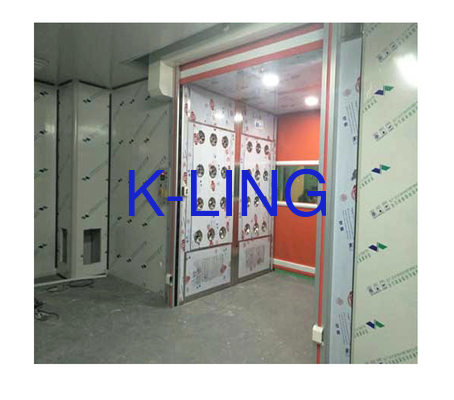

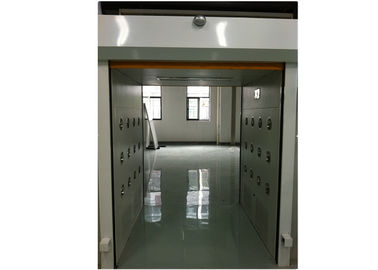

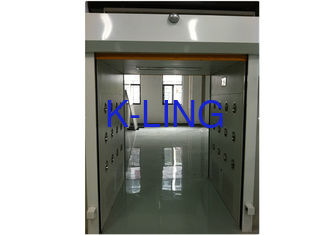

U Type Air Shower Tunnel Two Row persons 3 sides blowing For Decontamination Project
Air shower tunnel for Pharmaceutical Packaging Industry:
Airshowertunnel's air shower technology provides a clean and controlled environment for the packaging of pharmaceutical products. The system removes particles and contaminants, ensuring product safety and quality.
Quicky Detail
Size: 1300x7500x2300mm
internal size : 790x7360x2000mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 12-50 person
SUS nozzle: 96pcs
Blower way: three size blow
Air speed :>25m/s
Power: 380V/50HZ
Applications: it can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.
Introduction:
Air shower Tunnel is a related equipment for clean workshop and clean room, which not only removes dust from the surface of people and goods, but also plays as a role of air lock valve to prevent unpurified air from flowing into the clean area. It can be used with all supporting clean room and clean workshop.
a: there is follow type : side blowing air shower tunnel, two men double sides blowing air shower tunnel.
single man with three side blowing
b: Material: color steel plate, cold rolled plate with plastic spraying, stainless steel plate
c: High-tech smart programmable microprocessor controller
d: Automatic control operation, two-door electronic interlocking, infrared sensors, automatic air showering
e: Customizable
operating features :
1 : Microelectronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
|
KEL-AS1300T Air Shower Tunnel
|
|
MODEL
|
KEL-AS1300T-1
|
|
External size (mm)
(WXDXH)
|
1200x7500x2180
|
|
Work zone (mm)
(WXDXH)
|
800x7360x1910
|
|
Persons per cycle
|
10-50 person
|
|
Air shower Duration
|
Factory set at 12 second (adjustable)
|
|
Air shower direction
|
Three side with blowing
|
|
Material
(Option)
|
1: Entirety Sus304.
2: Entirety sus201.
3: External is steel with power coated, Internal is SUS304.
4: External is steel with power coated. Internal is SUS201.
|
|
Control system
|
1: PCL control system with LED display for the shower time.
2: The shower time from 0-99second. (Adjustable).
3: Infrared ray inductor for inside personal shower automatic.
4: Human voice prompt system.
5: with CE remark
|
|
The power of Fan
|
380V/50HZ/750W
(2 set)
|
|
Air flow of fan(m3/h)
|
1300m3/h
|
|
Fan run (r/min)
|
2800r/min
|
|
Nozzle in stain less steel
|
96pcs
|
|
Wind speed(m/s)
|
24-29m/s
|
|
Noise level(dB)
|
<62dB
|
|
LED Fluorescent Lamp
|
20wx6
|
|
HEPA Filter
|
Size(mm)
|
630X630X69mm
|
|
Efficiency
|
99.99%@0.3um
|
|
Air velocity
|
1000(m3/h)
|
|
Initial resistance(pa)
|
<220pa
|
|
Pre-filter
|
Size(mm)
|
775x380x17
|
|
Efficiency
|
75% @ 0.5um
|
|
Resistance(pa)
|
<30 Pa
|
|
Electrical
|
Power supply
|
380v/50Hz
|
|
Net power(kw)
|
0.75X5 kw
|
Customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
