Product Details:
Payment & Shipping Terms:
|
| Control System: | PLC Contro System | Door: | Half Glass With Sus304 Frame |
|---|---|---|---|
| Locker: | Electric Interocker | Air Speed: | More Than 24m/s |
| Noise: | Less Than 75dB | Blowing Way: | Vertical Or 3 Side Blowing |
| Power: | 380V/50HZ 4.5KW | Certificated: | CE |
| High Light: | electronics clean room,biological clean room |
||

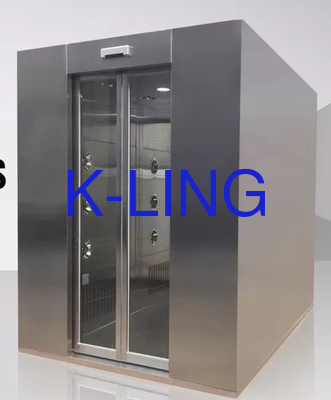

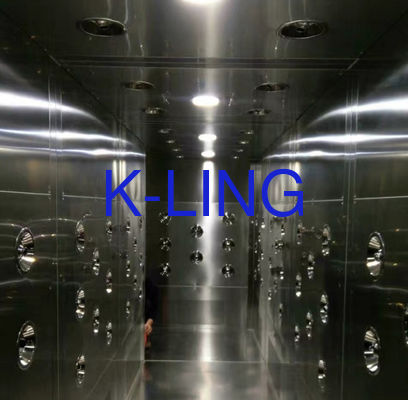

Z Type Clean Room Air Shower Tunnel One Row Person With Both Side Blowing
Air shower tunnel for Semiconductor Manufacturing Industry
Semiconductor manufacturing requires a high level of cleanliness to ensure product quality. Airshowertunnel's HEPA filtration system removes
particles as small as 0.3 microns, ensuring a clean environment for manufacturing and handling sensitive electronic components.
Quicky detail
External Size: 1300x3000x2180mm
Internal size : 790X2900X1910
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 3-20 person
SUS nozzle:48 pcs
Blower way: two size blower
Air speed :>25m/s
Power: 380V/50HZ
Introduction:
The greatest source of particulate contamination in a clean room is the operator air shower are installed between change areas and the clean room, the air shower enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower, after you pass the air shower
Applications: Semiconductor plant, microelectronics plant, bio-pharmaceutical plant, etc
operating features :
1 : Microelelctrincs control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
|
KEL-AS1300T-3Z Air Shower Tunnel |
|||
|
MODEL |
KEL-AS1300T-3Z |
||
|
External size (mm)(WXDXH) |
1300x7500x2180mm |
||
|
Work zone (mm)(WXDXH) |
790x2900x1910mm |
||
|
Persons per cycle |
3-20 person |
||
|
Air shower Duration |
Factory set at 12 second (adjustable) |
||
|
Air shower direction |
Two side with blowing |
||
|
Material (Option) |
1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. |
||
|
Control system |
1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark. |
||
|
The power of Fan |
380V/50HZ/750W (3 sets) |
||
|
Air flow of fan(m3/h) |
1300m3/h |
||
|
Fan run (r/min) |
2800r/min |
||
|
Nozzle in stain less steel |
48 pcs |
||
|
Wind speed(m/s) |
23-29m/s |
||
|
Noise level(dB) |
<62dB |
||
|
LED Fluorescent Lamp |
20wx3 |
||
|
HEPA Filter |
Size(mm) |
630X630X69mm |
|
|
Efficiency |
99.99%@0.3um |
||
|
Air velocity |
1000(m3/h) |
||
|
Initial resistance(pa) |
<220pa |
||
|
Pre-filter |
Size(mm) |
775x380x17 |
|
|
Efficiency |
75% @ 0.5um |
||
|
Resistance(pa) |
<30 Pa |
||
|
Electrical |
Power supply |
380v/50Hz |
|
|
Net power(kw) |
0.75X3 kw |
||
Customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
