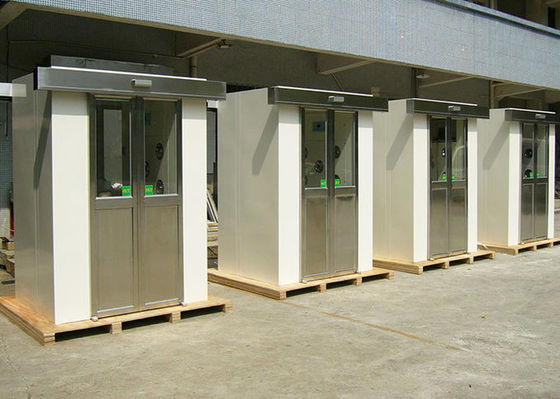

Class100 L Type Automatic Air Shower Tunnel For Biological Engineering Laboratory

Class100 L Type Automatic Air Shower Tunnel For Biological Engineering Laboratory
Class100 L Type Automatic Air Shower Tunnel For Biological Engineering Laboratory Class100 L Type Automatic Air Shower Tunnel For Biological Engineering Laboratory

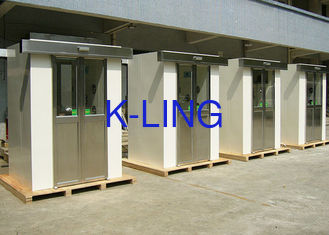

Large Image :  Class100 L Type Automatic Air Shower Tunnel For Biological Engineering Laboratory

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-ASP1590T-3T SERISE
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 15 WORKING DAYS AFTER DEPOSIT
Payment Terms: T/T, LC AT SIGHT
Supply Ability: 50UNITS/MONTH
Detailed Product Description
Model: KEL-AS 1590 P3 Inside Material: Steel With Power Coated (T=1.0MM )
Outside Material: Stainless Steel304(t=1.0mm) Internal Size: 800x15000x2000
Out Side Size: 1300x15000x2200 Air Speed: More Than 23m/s
Blowing Way: 3 Side Blowing Ion-static Device: 3sets
Door: Half Glass With Stainless Steel 304 Frame Control System: PLC Control System
Power: 380V/ 50HZ Fan: 19sets
Packing: Polywood Packing Product Name: Automatic Air Shower Tunnel
High Light:

air shower system

,

electronics clean room



 T Type KEL - AS1590T Automatic Air Shower Tunnel For Biological Engineering Laboratory



Quicky detail



External Size: 1590x3000x2200mm

internal size : 1090x2930x2000mm

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 3-50 person

SUS nozzle: 48pcs

Blower way: three size blower

Air speed :>25m/s

Power: 380V/50HZ





Introduction:



The greatest source of particulate contamination in a clean room is the operator air shower tunnel are installed between change areas and the clean room, the air shower enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower, after you pass the air shower tunnel





Applications:Pharmaceutical,Medical Device,Aerospace/Government,Health Care,semiconductor, electronics, precision manufacture, animal labs , research labs. metal manufacture and lead industry.



Class100 L Type Automatic Air Shower Tunnel For Biological Engineering Laboratory 0

operating features :



 A : Photoelectric sensor, automatic adjustable blowing time (0-99 min),touch panel

       and timer with LED display.

 B : Double doors  or singal door with mechanical or electric interlock.
 C:  Anti-static,HEPA air  filter. Auto, Stop, Manual, Emergency Stop function
 D:  A powder failure safety function,Interior fluorescent lamp and flush windows
 E:  Circulation wind,EVA seal, Modular design, easy for transportation
 F:  Customer sizes are possible




                                     KEL-AS1590T-3L  Air Shower Tunnel

MODEL

KEL-AS1590T-3L

External size (mm)

(WXDXH)

1590x3000x2200mm

Work zone (mm)

(WXDXH)

1090x2930x2000mm

Persons per cycle

   3-50 person

Air shower Duration

Factory set at 12 second (adjustable)

 Air shower direction

Three side with blowing

Material

(Option)

1: Entirety Sus304.

2: Entirety sus201.

3: External is steel with power coated, Internal is SUS304.

4: External is steel with power coated. Internal is SUS201.

Control system

1: PCL control system with LED display for the shower time.

2: The shower time from 0-99second. (Adjustable).

3: Infrared ray inductor for inside personal shower automatic.

4: Human voice prompt system.

5: with CE remark.

The power of Fan

380V/50HZ/750W   (4 set)

Air flow of fan(m3/h)

 1300m3/h

Fan run (r/min)

2800r/min

Nozzle in stain less steel

  48 pcs

Wind speed(m/s)

 23-29m/s

Noise level(dB)

<62dB

LED Fluorescent Lamp

20wx4



HEPA Filter

Size(mm)

630X630X69mm

Efficiency

99.99%@0.3um

Air velocity

1000(m3/h)

Initial resistance(pa)

 <220pa



Pre-filter

Size(mm)

  775x380x17

Efficiency

  75% @ 0.5um

Resistance(pa)

 <30 Pa

Electrical

Power supply

 380v/50Hz

   Net power(kw)

     0.75X4kw

Customer’s design is available.

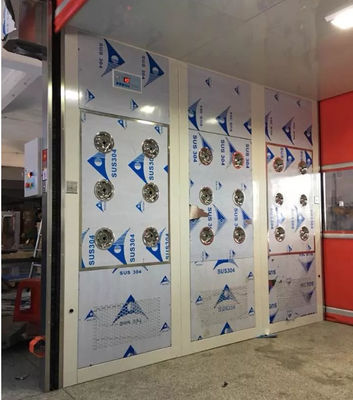

Class100 L Type Automatic Air Shower Tunnel For Biological Engineering Laboratory 1





Factory test:



All of equipment is individually factory tested for safety and performance

in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
