Product Details:
|
Name: | Rigid V Bank Filter | Efficiency: | F5 / F6 Efficiency |
---|---|---|---|
Pack: | 4V | Dimension: | Customized Size |
Type: | V Bank Hepa Filter | Usage: | Air Filtration |
Filtration Grade: | Medium Filter | Warranty: | One Year |
Condition: | New | After-sales Service Provided: | No After-sales Service |
Highlight: | home air filters,commercial air filters |

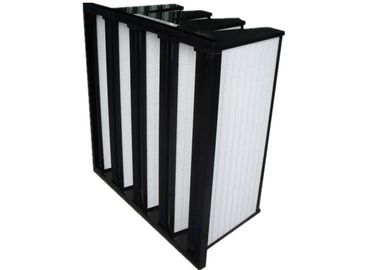

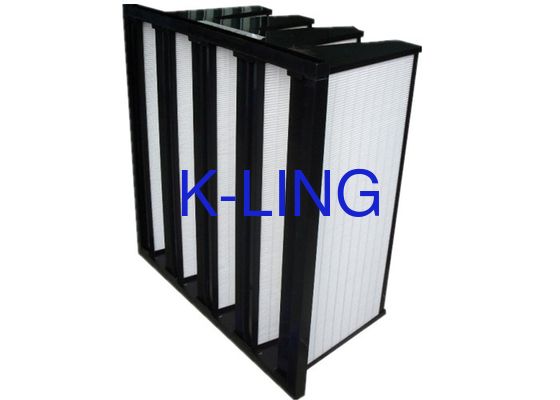

Light Weight 4V Rigid V Bank Filter Dust , F5 / F6 Efficiency Air Condition Filter
Quickly detail
Media: Lydall glass fiber or PP media
Frame: Aluminum /Plastic
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x292
Pack: 4 or 3 packs
Resistance:<30-50pa
Performance:
Big media area, long time use life, big air volume, low resistance, light weight and easy install .
Applications area:
4 V rigid Cell air filter widely use for medium filtration in industry and commercial field.
That is medium filter in clean room HVAC system.
Characteristics:
1: The 4 V rigid Cell air filter use for filter more than 0.5um particles and dust in HVAC air conditional system ,that particular design for HVAC project at low resistance with big air volume.
2: The filter media adopt the pp media or ultra-thin glass fiber with high dust holding capacity , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .
3: The polypropylene plastic frame can be Incineration when use out .
4: the filter with flange can replace by pocket air filter.
The sealant around the media so that the air filter without any air leaking
5: the4 V rigid Cell air filterefficiency range: F6,F7, F8,F9(EN779).
Dimension and parameter:
Dimension (W*H*D) (mm) |
Pack |
Air flow (M3/h) |
Media area (m2) |
Holding dust(g) |
Primary resistance (by0.5m/s) |
Final resistance |
Efficiency (0.3um) |
287X287X292 |
2 |
900 |
4.63 |
280 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X592X292 |
3 |
2850 |
15 |
900 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X592X292 |
4 |
3800 |
20 |
1200 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X490X292 |
4 |
3100 |
16.44 |
1000 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
|||||
592X287X292 |
4 |
1750 |
9.26 |
550 |
〈60 |
250-300 |
F6 |
〈80 |
300-400 |
F7 |
|||||
〈100 |
300-400 |
F8 |
|||||
〈120 |
400-450 |
F9 |
Customized size is available .
Material and operation conditions:
Media |
Glass fiber and PP media |
Sealant |
PU Sealant |
Frame |
Plastic /Galvanized/Aluminum/SUS frame |
Media spacer |
PU hot glue |
Gasket |
EVA, or Neoprene gasket |
Efficiency |
65-95% F6-F9 |
Max temperature |
70°c |
Max humidity |
100% |
