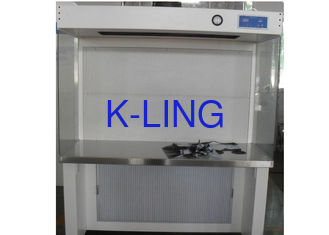

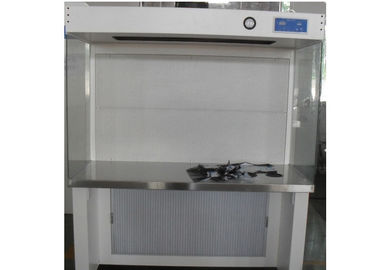

Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches

Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches
Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches

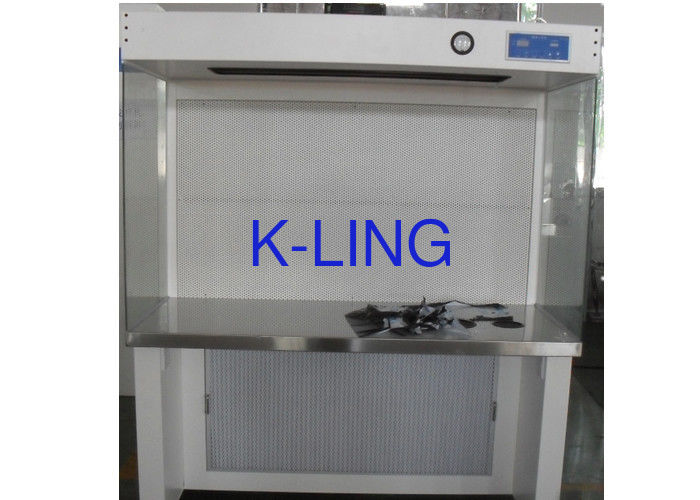

Large Image :  Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-1
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Detailed Product Description
Other Name: Laminar Flow Cabinets Purification Rank: IOS 5
Cabinet Material: Steel With Power Coated(t=1.0mm) Working Area: Stainless Steel 304(T=1.0mm)
UV Light: 1 Pcs Differential Pressure Gauge: This For Remind Of You Replace The HEPA Filter
HEPA Filter: 610x610x69mm Efficiency: 99.99%@0.3um
Size: 1200x700x1580mm Application: Microelectronics Factory
Highlight:

laminar flow clean bench

,

laminar air flow equipment

Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches





Quicky Detail



External size:  1200x850x1580mm

Internal Size:  1180x600x650mm

Purification rank: Class100

HEPA filter efficiency:99.99%- 99.999%@0.3um

HEPA filter size : 1170x610x69

Air speed :0.3-0.6m/s

Power: 220V/50HZ





Introduction:



The filtered air is passed through the main chamber of the flow  clean cabinet  in a horizontal laminar air stream before being of the laminar flow bench, It is placed within an ISO class8 clean room to provide an ultra-clean environment directly at the process level.



Applications:



clean rooms, electronics assembly, semiconductors, pharmaceutical .aerospace and medical devices industries, mycology and food microbiology, plant and mammalian Cell culture, applications benefiting from the isolated work surface frames design which virtually eliminates vibration.





Operating features:



1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.

2: LED control board with CE remark, low operating noise levels

3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.

Long –life HEPA air filter for supply air flow.

4: American Dwyer pressure remind of you replace the HEPA filter in regular.







Technical Parameter



MODEL

                                 KEL -hCB-2

External size (mm)

(WXDXH)

                       1200x850x1580mm

Work zone (mm)

(WXDXH)

                         1100x600x600mm

Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)

                         1800m3/h

Filtration efficiency

          More than 99.99%@0.3um  H13-H14

Average wind speed

                      0.3-0.6m/s

Intensity of illumination

                          >300lx

pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                        30Wx1

Material

(Option)

1:Entirety Sus201/304.

2:  External is steel with power coated, Internal is SUS304

4:  External is steel with power coated. Internal is SUS301

Power

                          450w

 Noise

                        <65dB

Power supply

                 220V-240V AC 50HZ

  Customer’s design is available.

Mobile Horizontal Laminar Flow Cabinets , Biological Lab Aerospace Clean Room Benches 0

Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
