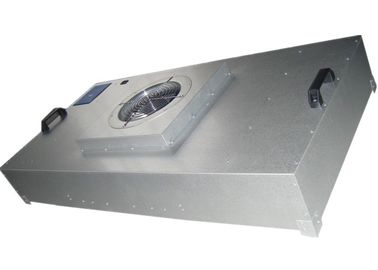

High Efficiency Class 10000 Cleanroom HEPA Filter Units With EMB Centrifugal Fan
Quicky detail
Internal Size: 1175x615x615mm
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 1170x610x69
Air speed :0.3-0.6m/s
Power: 220V/50HZ ,110v/60HZ
Introduction:
It is designed to provide filtered laminar air flow over a specific area, the unit integrates a high efficiency fan together with a HEPA/ULPA Filter. the FFU in contaminated air from the top of the module and exhausts filtered clean air vertically in a unidirectional air stream at its base.
Applications:

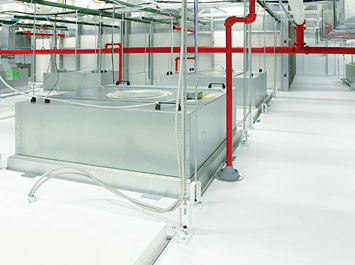

conventional clean room construction, soft wall or hard wall clean room,
Operating features:
1. high-efficient backward curved centrifugal fans
External rotor motor fans which pursued the most suitable design by computer analysis.
2. Flexible change design
The specifications of unit can be designed according to customer's requirements besides our
standard models, example for the modifi-cation of main filter type, cabinet materials....etc.
3. Light and thinner unit
Including main filter, the height of unit is 100mm and the weight is 5 Kg only. It can fit to low ceiling room.
4. Easy carry/Installation friendly design
The transportation and installation of unit is easy with main filter and the outlook of units is pretty.
5. Multiple safe protect devices(Option)
The overload current protection circuit, abnor-mal pilot lamp, abnormal signal circuit motor
temperature control switch protection circuit...etc. for requirement.

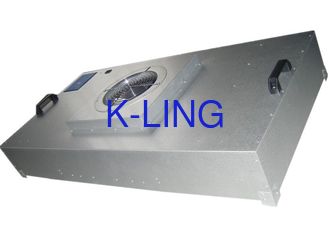

Illustration:
1: Plastic Handle 2: Fan 3: HEPA filter 4:Pre-filter 5:Control panel 6:Power cable
Technical Parameter:
|
MODEL
|
KEL-FFU1175
|
|
External size (mm)
(WXDXH)
|
1175x575x350
|
|
Material
|
Steel plate with painting/galvanized steel/aluminum/stainless steel
|
|
Air flow(m3/h)
|
1000m3/h
|
|
Air velocity (m/s)
|
0.3/0.35/0.4/0.45/0.5m/s
|
|
Pressure(pa)
|
97(10mmAq)
|
|
Control system
|
1: Power on/off 2: Control air speed up/down
|
|
HEPA FILTER
|
Size(mm)
|
1170x570x69
|
|
Efficiency(%)
|
99.995% @ 0.3um
|
|
Pressure (pa)
|
<220pa @ 0.45m/s
|
|
Power supply
|
220V/110V ,50/60HZ
|
|
Power (w)
|
123w
|
|
Noise (Db)
|
57db
|
customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
