Product Name: | Softwall Clean Room | Cleanlines: | From Class 100-10000 |
---|---|---|---|
Warranty: | 2 Years | Size: | Customized |
Floor: | PVC/ Expoxy Floor For Cleanroom | Usage: | Pharmaceutical/ Lab/hospitcal |
Wind Speed: | 0.45m/s For Cleanroom | HEPA Filter: | H11-H14 HEPA Filter |
Highlight: | Laminar Flow Booth,Laboratory clean room |

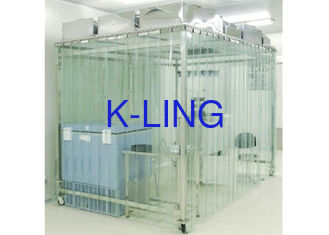

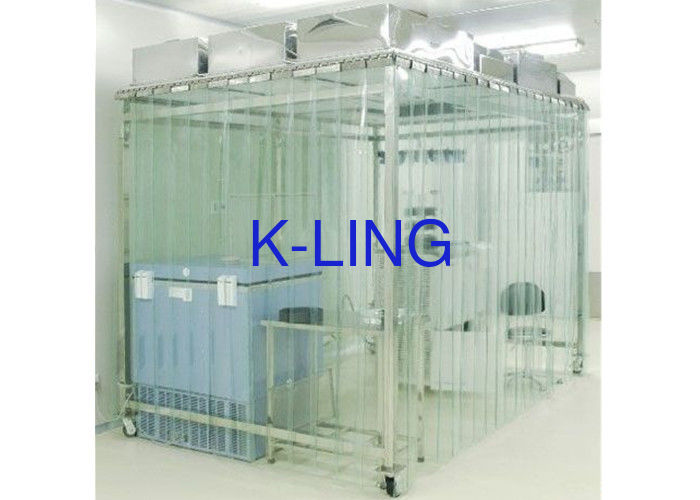

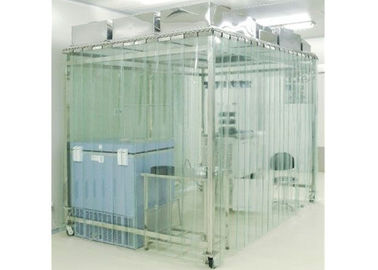

Stainless Steel 304 Movable Vertical Air Flow Soft Wall Clean Room
Quickly detail
External size : 3000x3000x2596mm
Internal Size: 2900x2900x2205mm
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Laminar flow: vertical
Air speed :0.3-0.6m/s
Power: 220V/50HZ 110V/60HZ
Company information :
Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment , HVAC air filter, clean room product such as clean room air shower, Air shower room for GMP /QS Standard, stainless steel air shower room, Pass box, pass thru, Laminar flow bench, Hard wall clean room, soft wall clean room, HEPA filter unit series, clean shed, clean booth, laminar flow booth Dispensing booth, sampling booth, down flow booth, fan filter unit(EBM Fan), static pass boxes, medical clean pass boxes, pharmaceutical static pass boxes,Mini-pleats ULPA/HEPA air filter, V-cell filter, pocket air filter, panel air filter, bag air filter, z-line filter, and so on .
Applications:
Food industry, aerospace, life sciences, biotechnology, medical devices, plastic injection module, electronics assembly or hospital pharmacy
Operating features
1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.
Illustration:
1: The frame is steel cube with milk powder coated.
2: M support leg
3: The wall made from clarity synthetic glass.
4: FFU control box.
5: FFU with HEPA filter and pre-filter
6: Purification lamp
7: PVC strip curtain
8: Purification rank class100-1000 (FS209E Stander)
Technical Parameter:
MODEL |
KEL-LFB3000 |
Ex size (mm) |
3000X3000X2596 |
In size (mm) |
2900x2900x2205 |
Purification rank |
Class10-300,000(FS209E USA) |
HEPA filter |
Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS) |
Pre-filter |
Efficiency : 85% @ 5um |
Control system |
PC control system / promised speed by control box |
Pressure Gauge |
American Dywer pressure |
Noise |
<50-55 dB (test point distance is 1m) |
Air velocity |
0.2-0.5m/s Adjustable (test point distance is 30cm) |
Frame material |
stainless steel/steel with power coated/Cast aluminum profile |
Wall frame |
Tempered glass / PVC anti-static curtain (option) |
Fan |
EBM Fan /Taiwan fan/ Domestic fan (option) |
Power suppler |
AC110/220v 50HZ/60HZ |
Customer’s design is available.
