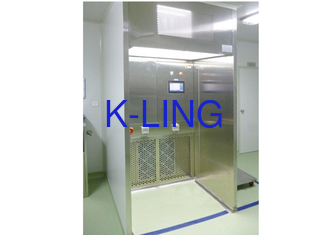

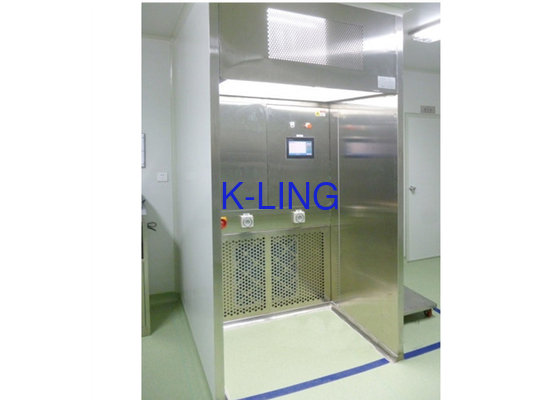

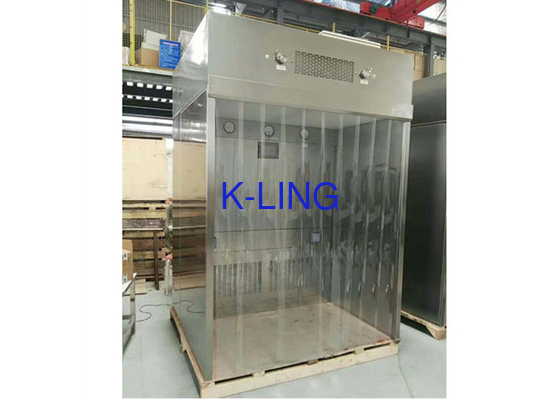

Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter

Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter
Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter

Large Image :  Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-DB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Polywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Detailed Product Description
Cabinet: Stainless Steel Cabinet Name: Sampling Booth/ Dispensing Booth
Air Flow: Laminar/ Vertical Air Flow Trademark: KEL
Power Source: Electrical Power: 380V/50HZ
High Light:

Clean Room Weighing Booth

,

Vertical Air Flow Weighing Booth

,

F7 Bag Filter Weighing Booth

GMP Clean Room Weighing Booth, Dispensing Booth, Sampling Booth With CE Certification





Product introduction


Weighing Booth, Dispensing Booth, Sampling Booth for GMP is a special local purification equipment that is used in the latest version of GMP for the production of sterile preparations. It provides a vertical unidirectional airflow, and some (80%-90%) clean air circulates in the working area. 10%-20% is discharged to the nearby area to create a negative pressure in the work area, prevent cross-contamination to ensure a high cleanliness environment in the work area. It is composed of work area, return air box and fan box cabinet, etc. The control panel is located on the front of work area, which can start the device, adjust air speed and working conditions. It has differential pressure gauges, buzzers and wind speed sensors, which can test the real-time resistance of filters, failure alarm and real-time speed in the work area.





Technology Parameters


Product name: Weighing Booth, Dispensing Booth, Sampling Booth for GMP, Negative pressure chamber
Cabinet material: AISI 304 / SUS304
Curtains: Striped curtains and 0 cm from the floor
Fan: Centrifugal fans with static and dynamic equilibrated turbine
Potentiometer: Control the air velocity
Type: 10% fresh air
Air flow :Vertical
Clean level: ISO class 5 (Class 100)
Noise :<70 dB ( testing 1 meter from machine)
Light intensity: More than 600 Lux
Air speed 0.36 ~ 0.54 m/s
Filter 1: G2 synthetic fiber pre-filters
Filter 2: F7 bag filter
Filter 3: H14, 99.997%
Differential gauges:Each filter for one differential gauge with alarm function
Gauges type: Divided by zones-Green, Orange and Red
Indication lamp alarm: For motor/fan fault
Aceessories: With E-Stop,PLC( Siemens)
Power supply :230V(±10%)/ 50Hz Single-phase or 380V/50Hz ,3P
Warranty: 1 year

Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter 0

Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter 1



Parameter



Customer's design is available.



Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter 2





ABOUT US :



GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.

Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.

Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.

Vertical Air Flow Clean Room Weighing Booth With F7 Bag Filter 3
