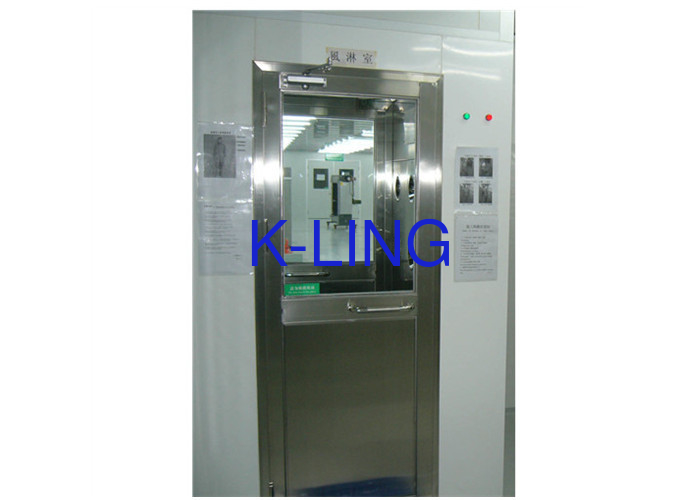

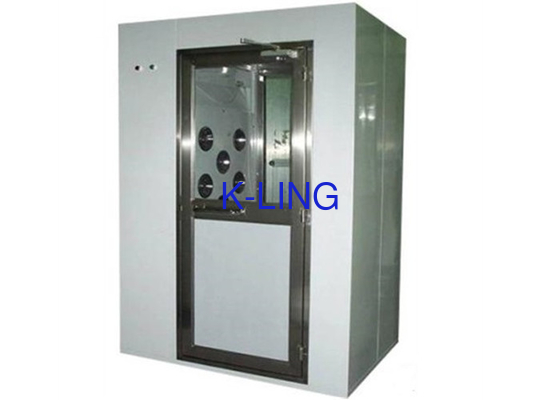

Outside Spray Coating Air Shower/ Cleanroom Air Shower Two Stage Filtration
Features:
1. Photoelectric control, automatic shower.
2. Circulated air design keeps shower area clean in non-shower state.
3. Double doors adopt electric interlocking to force shower; double doors may be made as automatic movable door.
4. Made as negative pressure and anti-exploding air shower according to users’ requirement.
5. Equipped with the device to remove static.
6. Carry on air brake, cushion type and other particular design, manufacturing.
Product Type Outside Spray Coating Air Shower
Material for casing 1.2mm cold rolled steel with powder coated /stainless steel (SUS#201 or SUS#304)
Material for doors Stainless steel / aluminum alloy / powder coated steel
Nozzles SUS#304
Door leaf Single leaf / double-leaf
Door type Manual swing door/ Auto sliding door/ High speed shutter door
Blowing way Top-side blowing, single-side blowing, two-side blowing or three-side blowing
Control system English intelligent control panel with human voice (If client requrie control by PLC, it is also ok)
Locks Electric mortise lock or Electric magnetic lock
HEPA filter efficinecy: H13 / H14
Pre filter G3 / G4
Light more than 500Lux
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 22-25m/s above
Power supply 380V/50HZ/3PH or 220V/50HZ/1PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)
Parameter
| Air shower patterns |
External dimensions |
Inner dimension |
| Single person double air shower room |
1240×1000×2050mm |
790×860×1930mm |
| Two person double air shower room |
1240×2000×2050mm |
790×1860×1930mm |
| Three person double air shower room |
1100×2000×2080mm |
730×2900×1930mm |
| Goods air shower room-1 |
2000×2000×2080mm |
1500×1900×1930mm |
| Goods air shower room-2 |
2000×3000×2080mm |
1500×2900×1930mm |
