Name: | V Bank Hepa Filter | Size: | Custom |
---|---|---|---|
Separate: | Hot Melt | Frame: | Galvanized Frame Or Stainless Steel Frame |
Packaging: | Plywood Packing | Original: | GuangZhou China |
High Light: | H13 V Bank Filter,Air Conditioning System V Bank Filter,U17 V Bank Filter |

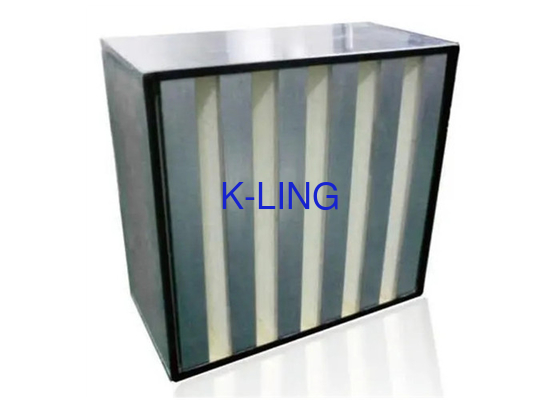

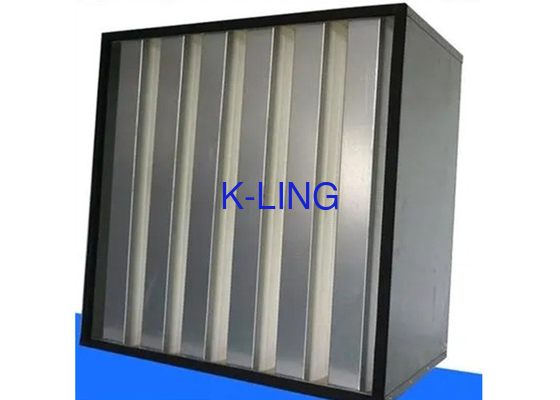

H14 V-Bank Cell HEPA Filter Big Dust Capacity Galvanized / Stainless Steel Frame
Advantages
1.Filter efficiency ranges from E10 to U17.
2.Adopt computer-controlled automatic production line for manufacture of mini pleat filter material, good stability of filtration efficiency.
3.Using special fiberglass paper or PP paper as the filter media, good stability of filtration efficiency.
4.Frame can be made of galvanized steel sheet, stainless steel sheet or ABS plastic.
5.Each filter is tested according to EN1822:2009.
Material Instructions
1.Media: Applies fiberglass or PP filter paper.
2.Frame: Galvanized steel sheet, stainless steel sheet or ABS plastic with V-Bank high capacity.
3.Separator: Hot-melt glue.
4.Sealant: Polyurethane.
5.Temperature: Maximum 90°C in continuous service
Application
Suitable for air conditioning purification equipment needs high ventilation, such as medium filter and terminal filter in air-conditioning systems.
Parameter
Size(WxHxD)mm | Filter Efficiency | Media area m3 | Airflow/pressure drop m3/h/Pa |
305x610x292 | E10 | 14 | 2000/160 |
595x595x292 | E10 | 21 | 4000/160 |
610x610x292 | E10 | 35 | 5000/160 |
305x610x292 | E12 | 16 | 1500/110 |
595x595x292 | E12 | 33 | 3400/110 |
610x610x292 | E12 | 40 | 4000/110 |
289x595x292 | H13 | 16 | 1300/110 |
595x595x292 | H13 | 38 | 3200/110 |
610x610x292 | H13 | 40 | 4000/110 |
