24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification

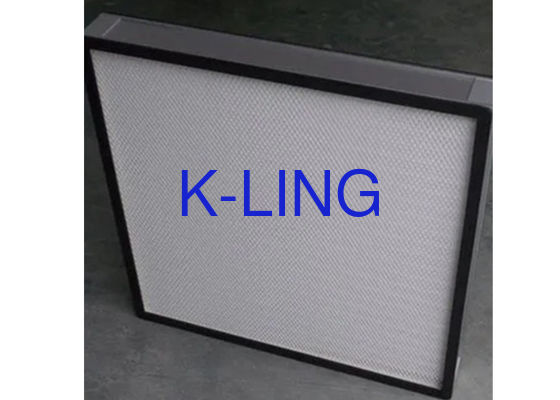

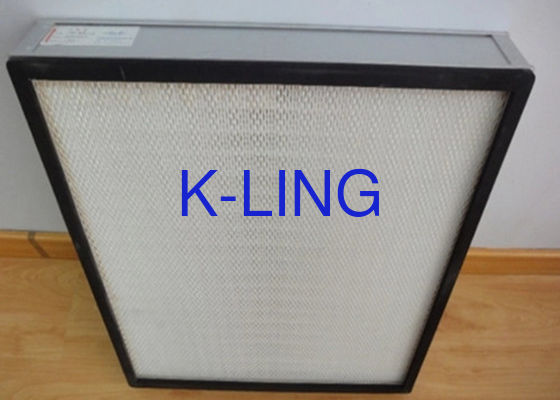

Large Image : 24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification

Product Details:

Place of Origin:	CHINA
Brand Name:	KEL
Certification:	CE
Model Number:	KEL-HF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	plywood packing
Delivery Time:	8-15 working day
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	300 set/ month

Contact Now

24x24 Inch Mini Pleat HEPA Air Filter with Aluminum Frame and H12-H14 Efficiency for Air Purification

Description

Type:	Mini Pleated Air Filter	Efficiency:	H12- H14
Certification:	CE	Frame:	Alluminum Profile/ Sus Frame/ Powder Coated Frame
Warranty:	1 Year	Original:	China
Highlight:	Mini Pleat HEPA Air Filter , 24x24 Inch HEPA Air Filter , Aluminum Frame HEPA Air Filter

24x24 Inch Mini Pleat HEPA Air Filter Air Purification System Aluminum Frame

Product Overview

24x24 Inch Mini Pleat HEPA Air Filter/Air Purification System Filter with Aluminum Frame designed for superior air purification performance in demanding environments.

Key Features

Homogeneous filter media velocity coupled with low pressure drop
Large surface area and high dust holding capacity
Cost-efficient and dependable operation
Light weight and easy to install
Each filter element is tested for leakproofing before market release

Applications

Highly sensitive industrial processes (pharmaceutical, biotechnology, chemicals, food and beverages, optics, micro-electronics, etc.)
Sophisticated air-conditioning systems (theaters/intensive care units in hospitals and medical institutes, sterile rooms, labs, research centers, etc.)

Technical Specifications

Standards: H11/H13/H14/U15/U16 EN1822

Efficiency: DOP 99%@0.3micron, 99.99%@0.3micron, 99.999%@0.3micron, 99.9997%@0.12micron, 99.99997@0.12micron

Recommended Final Pressure Drop: 2-3 times initial pressure drop

DIN 53438 Flammability: F1

UL 900 Standard: Class 2

Thermal Stability: 70°C

Moisture Resistance: 100% RH

Model	Width (mm)	Height (mm)	Depth (mm)	Aeration Capacity (m³/h)	Efficiency (Sodium Flame)	Frame Material
KEL	915	610	96	1900/220	99.99	Aluminium
KEL	915	610	80	1450/220	99.99
KEL	305	305	80	300/220	99.99
KEL	915	610	69	1500/220	99.99
KEL	610	610	69	1000/220	99.99
KEL	305	305	69	250/220	99.99
KEL	915	610	50	1100/220	99.99
KEL	610	610	50	700/220	99.99
KEL	305	305	50	180/220	99.99
KEL	915	610	47	1000/220	99.99
KEL	610	610	47	635/220	99.99
KEL	305	305	47	160/220	99.99
