| Clapboard: | Without Clapboard | Efficiency: | G1-G4 |
|---|---|---|---|
| Color: | Green | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | Green Pleated Panel Air Filters,G1 Pleated Panel Air Filters,Polyester Media Pleated Panel Air Filters |
||

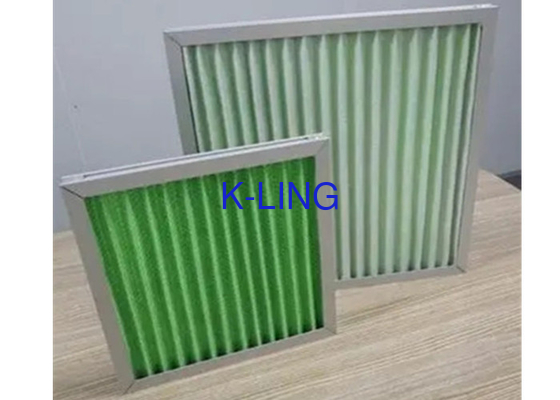

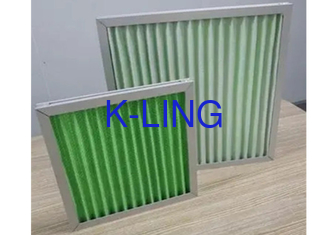

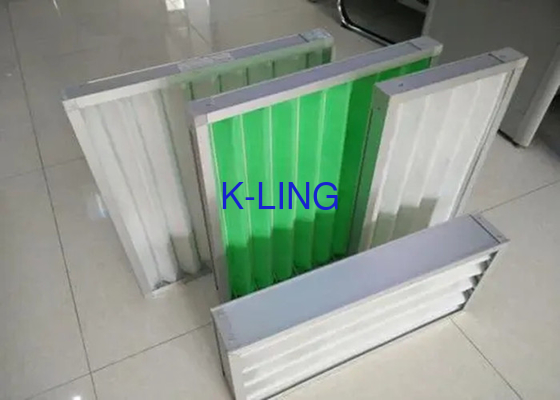

G1 G2 G3 G4 Efficiency Air Pre Efficiency Polyester Media Filter/ Pleated Panel Air Filters
Introduction:
The primary filter, which mainly filters ≥5um dust particles, is a clean room fresh air conditioning system, and the air inlet of the new fan unit is pre-filtered.
Fetures:
1,The frame adopts a detachable design, which is convenient for replacing the filter material to achieve the reuse of the frame;
2,The composite metal mesh of the filter material is made into a folded type, which provides the largest filtering area for the airflow, and the filtering area is 5 times that of the general flat filter.
3,The filter material is made of polyester synthetic fiber, which can be cleaned and reused many times, and has a long service life.
Specification:
| Filtration class | G2,G3,G4(EN779), EU2,EU3,EU4(EUROVENT) |
Filtration class | 75%,85%,95% (ASHRAE52.1-1992) |
| Moisture resistance | ≤99%RH | Filter particles | ≥5μm |
Parameter
| Model NO. | Actual Size HxWxD (mm) | Air Flow (m³/h) | Media Area Flow (m²) | Velocity (m/s) |
| HA42-001 | 594*289*46 | 1150 | 0.42 | 1.86 |
| HA42-002 | 594*492*46 | 1850 | 0.69 | 1.76 |
| HA42-003 | 594*594*46 | 2250 | 0.83 | 1.77 |
| HA42-004 | 594*289*69 | 1300 | 0.47 | 2.10 |
| HA42-005 | 594*492*69 | 2100 | 0.77 | 2.00 |
| HA42-006 | 594*594*69 | 2500 | 0.92 | 1.97 |
| HA42-007 | 594*289*96 | 1750 | 0.64 | 2.83 |
| HA42-008 | 594*492*96 | 2850 | 1.05 | 2.71 |
| HA42-009 | 594*594*96 | 3400 | 1.26 | 2.68 |
