Double - Layer Nylon Mesh Pleated Panel Air Filter G2 Air Purifier Pre Filter

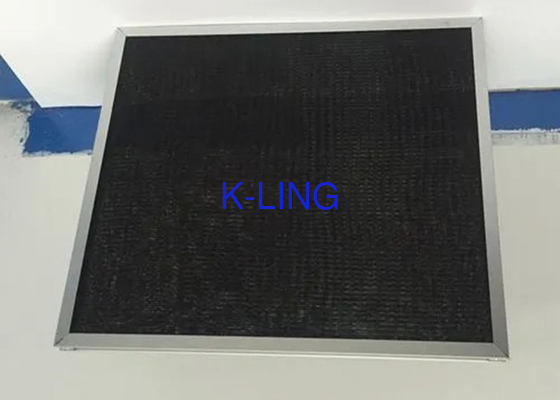

Large Image : Double - Layer Nylon Mesh Pleated Panel Air Filter G2 Air Purifier Pre Filter

Product Details:

Place of Origin:	CHINA
Brand Name:	KEL
Certification:	CE
Model Number:	KEL-AF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	plywood packing
Delivery Time:	8-15 working day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 set/ month

Contact Now

Detailed Product Description

Name:	Pleated Panel Air Filter	Type:	Nylon Mesh Replacement Air Filter
Efficiency:	G2/G3/G4	Color:	Black
Application:	Clean Room	Original:	China
High Light:	Nylon Mesh Pleated Panel Air Filter , Double Layer Pleated Panel Air Filter , G2 Air Purifier Pre Filter

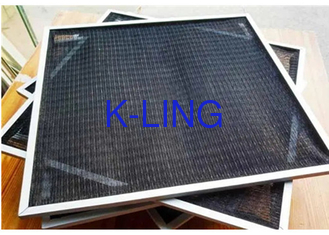

Double-Layer Nylon Mesh Replacement Panel Air Filter / Air Purifier Pre Filter

Introduction:

The nylon filter primary air filter is mainly made of P.P fiber textile molding. Acid and alkali resistant, corrosion resistant. The resistance is low, it can be washed repeatedly, and the economy is imaginable. The captured long and short fibers and dust particles are easy to clean, and the filtration efficiency is not affected by cleaning. Good impact resistance.

Fetures:

1. The filter material is a black nylon mesh made of PP material.
2. It has acid and alkali resistance and corrosion resistance.
3, can be repeatedly cleaned, filtration efficiency is not affected.
4. Generally designed as double-layer nylon mesh and wire support structure.
5. The outer frame can be designed as a galvanized iron frame or an aluminum frame.

Specification:

Product Details	Type	Panel filter, Pleated filter
	Feature	Large dust capacity,low drop
	Frame	Cardboard/aluiminum/galvanzied
	Media	Synthetic fiber
	Size	Standard or Customerized
	Metal gauze	Galvanzied/aluminum net
	Efficiency	30-50% (merv 7-merv 9)
	Class	G3,G4 or F5

Size and specification:

Model	Outside dimensions(mm)	Thickness(mm)	Rated air flow(m3/h)	Efficiency (%)	Inital resistance	Material
KEL-AF-1	595x595	21/25mm/30mm	2000-3200	G3 G4	60	Media	Active carbon
KEL-AF-2	595x295	21/25mm/30mm	1000-1500			Frame	Aluminum alloy / zinc galvanized
KEL-AF-3	595X495	21/25mm/30mm	1500-2500			Frame work	Common steel wire/ stainless steel wire
KEL-AF-4	900x495	21/25mm/30mm	3000-5000			metal gauze	Galvanized Steel Wire mesh/welded wire mesh
