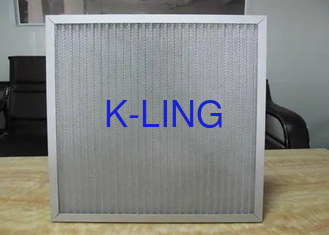

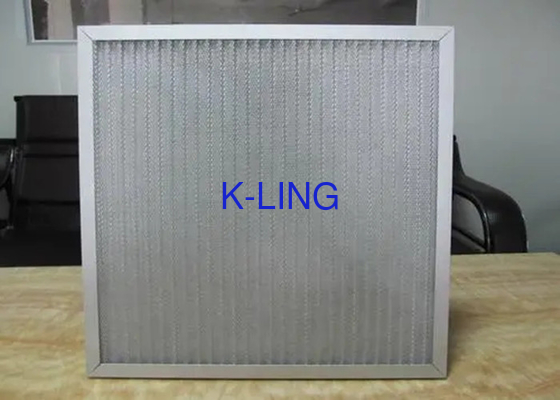

High Temperature Resistant Panel Metal Mesh Pre Filter Low Initial Resistance
Product Introduction:

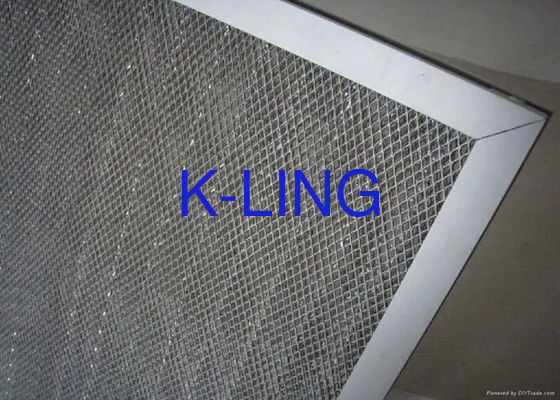

The panel metal mesh pre-filter adopts a multi-layer expanded aluminum mesh or a stainless steel mesh as a special filter material for the filter, which is rolled into a wave shape and arranged at the correct angle to each other. The multi-layer folded expanded aluminum mesh or stainless steel mesh has different densities, and the pore diameter is arranged from coarse to fine, so that the air changes the flow direction multiple times when the air passes through the filter screen, thereby increasing the dust collecting ability and efficiency.
Product Features:
Metal aluminum mesh initial effect filter product advantages:
1. Good washability
2. Low initial resistance
3. Strong structure
4. High temperature resistance
Metal aluminum mesh initial effect filter:
Generally used in primary air conditioning system, high temperature ventilation filter, long service life
Parameter
| Name | High temperature resistant panel filter |
| Frame | galvanized frame, aluminum frame, stainless steel frame |
| Filter material | glass fiber or special organic synthetic fiber |
| Filtration class | G3,G4 |
| Temp.resistance | 300 degrees |
| Normal Thickness | 10mm 15mm 21mm 46mm |
| Normal size | 595*595mm 500*500 |
| Initial Pressure | ≤48pa |
