| Cleanliness Class: | ISO CLASS 100 | Material: | Stainless Steel304 |
|---|---|---|---|
| Filtration: | G4+H14 | Place Of Origin:: | GuangZhou CHINA |
| Endurance:: | > 3 Hrs | Warranty:: | 1 YEAR |
| High Light: | Class 100 Medical Laminar Flow Cabinets,Stainless Steel 304 Laminar Flow Cabinets,H14 Laminar Flow Cabinets |
||

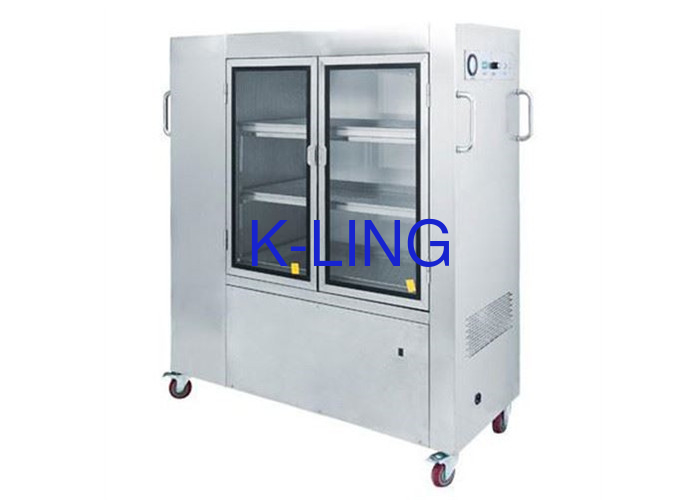

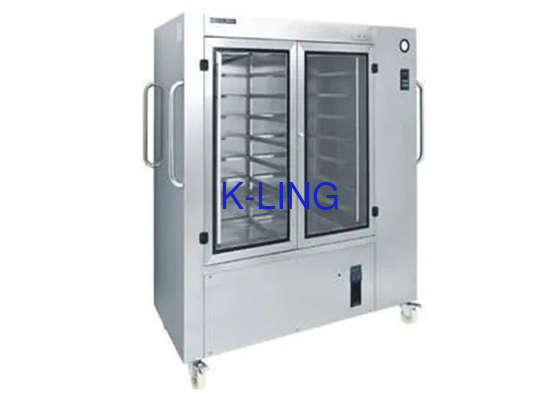

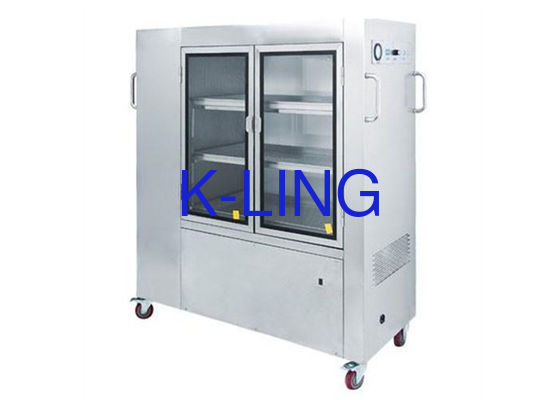

Class 100 Medical Cabinet Mobile Trolley With Stainless Steel 304 Material
Introduction
Transfer Carts with off-grid battery operation provide product protection and enable sterile transportation through inferior cleanrooms (e.g. manual dry freezer loading). Product protection is ensured by means of targeted air flow. A clean and low-turbulence air flow (laminar air flow) flows horizontally into the work area of the transfer cart and escapes into the surrounding area. Airborne particles are collected in a controlled manner. All safety-relevant functions are constantly monitored electronically.
The whole laminar flow car is made of 304/316L stainless steel plate, and the bottom of the car is made of universal casters with brakes. The body is composed of several major components such as a shell, a high-efficiency filter, an air supply system, a lighting lamp, and an operation module. In addition, a combination of ultraviolet germicidal lamps, microcomputer controllers, lead-acid batteries or lithium batteries, and UPS power devices can be added as needed. The equipment has the advantages of simple structure, flexible movement, convenient operation and use, and beautiful appearance.
Technical Details:
1. Self-supporting stainless steel construction on rollers
2. Removable shelves
3. Battery-operated for up to 6 hours
4. Laminar air flow system
5. Pre-filter cartriges behind the perforated plates
6. HEPA filter H14
7. Perforated plate air outlet surface
8. Automatic fan control for a constant LAF speed
9. Integrated control system
10.Technical documentation according to the Machinery Directive
11. Qualification documentation
12. GMP-/FDA-compliant design
13. CE declaration of conformity
Specifications:
Customer Design is Available.
|
Cleanliness Class
|
ISO CLASS 5
|
||
|
Material
|
SUS304 fingerprint-proof
|
||
|
Power
|
AC 220V/1PH
|
||
|
Filtration
|
G4+H14
|
||
|
Dimension(Nominal)
|
880 x 680 x 1150 mm (customizable)
|
||
|
Endurance
|
> 3 hrs
|
||
|
Explosive-proof Grade
|
EX d II BT4
|
||
|
Part No.
|
KEL-FT1
|
KEL-FT2
|
KEL-FT3
|
|
Material
|
SUS304 Fingerprint-proof
|
||
|
Input Voltage
|
AC 220V/1PH
|
||
|
Cleaness Class
|
ISO CLASS 5
|
||
|
Outer Dia
|
880*680*1850mm
|
1280*680*1850mm
|
1580*780*2050mm
|
|
Working Area Dia
|
800*600*700mm
|
1200*600*700mm
|
1500*700*700mm
|
|
Filter Efficiency
|
G4(EN779)
|
||
|
H14(EN1822)
|
|||
|
Avg.Air Velocity
|
0.36m/s~0.54m/s
|
||
|
Vertical Stroke
|
500-800mm
|
||
|
Touch Panel
|
Siemens
|
||
|
PLC
|
Simens/Mitsubishi
|
||
|
Wheel
|
4'PU
|
4'PU
|
6'PU
|
|
Pressure Guage
|
DWYER
|
||
|
Power
|
268W
|
326W
|
452W
|
|
Endurance
|
>4 hrs
|
>4 hrs
|
>3 hrs
|
|
Physical Obstruct
|
PC Makrolon/Stalinite
|
||
|
Air Velocity Transducer
|
0.75m/s
|
||
|
Glover
|
Optional
|
||
|
Gross Weight
|
97kg/214lbs.
|
127kg/280lbs.
|
186kg/410lbs.
|
|
Net Weight
|
79kg/174lbs.
|
104kg/229lbs.
|
152kg/335lbs.
|
