Product Details:
|
Material: | Stainless Steel 304/ 201/316L | Name: | Automatic Air Shower |
---|---|---|---|
Application: | Modular Clean Room | Standard: | CE |
Air Speed: | 25m/s | Original: | China |
Highlight: | SUS304 Modular Clean Room,2 Person Modular Clean Room,Workshop Modular Clean Room |

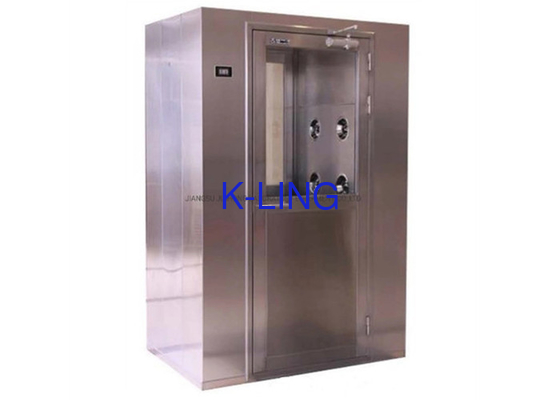

Clean Room Automatic Air Shower Tunnel For GMP Workshop Customized Size
Brief Introduction
Air shower is essential personnel into the clean room clean workshop purification equipment, strong commonality, but with all the clean room and clean workshop, at staff entering the workshop, must through the device, with a powerful incorporated air, by rotating the nozzle from injection to people in all directions, effective and rapidly clear the dust on the clothes to adhere to the chip, hair, other debris, it can reduce the pollution brought by the people in and out of the clean room at the pollution problem. The two-door interlock lock in the wind shower chamber can double the function of the air lock chamber to prevent contamination and unpurified air into the clean area. Eliminate the staff to bring the hair, ash bacteria into the workshop, meet the work site strict dustfree purification standard, produce high-quality products.
Parameter
Model | KEL-AS-1160 | KEL-AS-1500 | KEL-AS-2000 | KEL-AS-2500 |
External size | 1160*1000*2050 | 1290*1500*2050 | 1390*2000*2050 | 1390*2500*2050 |
internal size | 790*1000*1950 | 790*1500*1950 | 790*2000*1950 | 800*2500*1950 |
power supply | AC,1PH,220V 50/60HZ or AC, 3PH, 380V, 50/60HZ | |||
consumed power | 1100w | 1500w | 2200w | 2500W |
No of nozzles | 12pcs | 18pcs | 24pcs | 48pcs |
air speed | 20-25m/s | |||
air shower time | 0-99s adjustable, standard is 10s | |||
HEPA FILTER | H13 or H14, 99.99%@0.3um or 99.995%@0.3um | |||
material | SUS304, SUS201, baking finished optional | |||
NO. of person capacity | 1-2 | 2-3 | 3-4 | 4-6 |
Remark | specification can be customized according to customer's requirement |
