Product Details:
|
| Cabinet: | Stainless Steel Cabinet | Name: | Sampling Booth/ Dispensing Booth |
|---|---|---|---|
| Air Flow: | Laminar/ Vertical Air Flow | Trademark: | KEL |
| Power Source: | Electrical | Power: | 380V/50HZ |
| Highlight: | GMP Weighing Booth,Stainless Steel Cabinet Weighing Booth,Vertical Air Flow Weighing Booth |
||

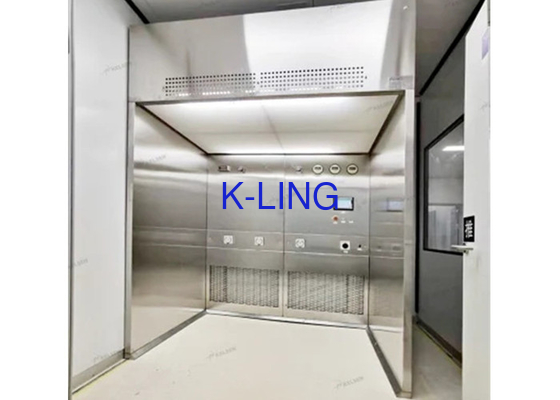

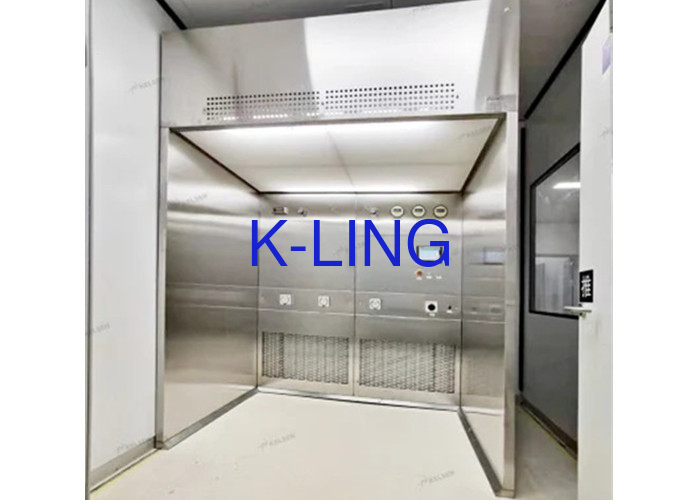

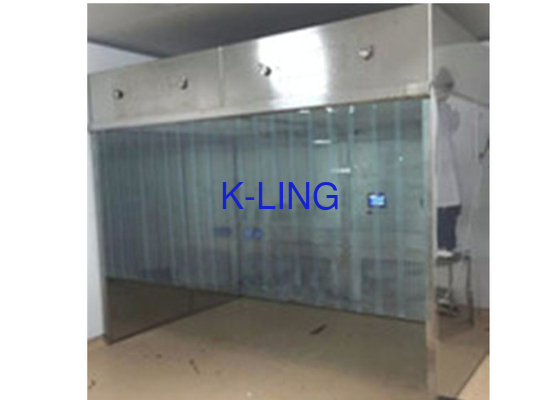

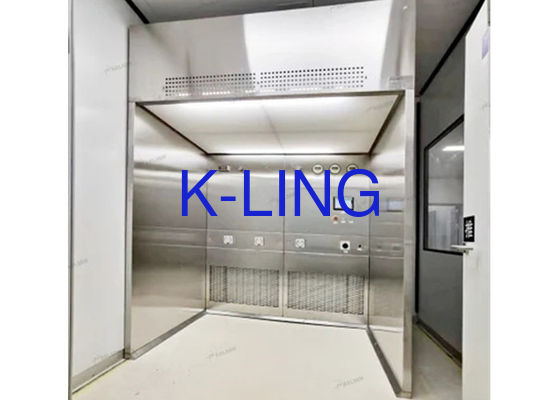

Pharmaceutical Weighing Booth/ Down Flow Booth GMP Standard With CE Certification
Description:
Weighting booth is purifying apparatus. Unidirectional vertical laminar flow Class ISO5 (Class100).
The Raw materials and compounds are refilling, weighing, filling, and sampling inside this booth. It is provided with high efficiency HEPA filter, which averts the airborne dusts by down flow of air technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
It removes powder contamination in order to protect the operator (user) and the nearby environment and is used for weighing, mixing and dispensing of powder. The sampling / dispensing booth is the re-circulation of air principle.
Characteristics:
Create a partial clean grade class A area
Negative pressure to prevent the cross infection or make harm to the operator
Three level filter to make sure the filter efficiency
Frequency-converting control to ensure the air velocity stable
With touch screen to check the working condition
PLF screen to ensure air flow no turbulence
Customized design is welcome.
TECHNICAL PARAMETERS
| Model | KEL-1000 |
KEL-1200 |
KEL-1400 |
KEL-1600 |
KEL -1800 |
Clean Level |
ISO 5 (Class 100), Class A |
||||
HEPA Filters |
99.999% efficiency at 0.3 um |
||||
Air volume |
Supply air volume: ≤7500m3/h, Exhaust air volume: ≤2250m3/h; Adjustable |
||||
Material |
Fully stainless steel 1.2mm |
||||
Air Velocity |
0.35~0.65m/s, adjustable |
||||
Noise |
≤75db |
||||
Illumination |
≥800lux |
||||
UV Lamp |
Emission of 253.7nm |
||||
Power Supply |
110/220V±10%, 50/60Hz |
||||
Consumption |
1100W |
1100W |
0.55KW*2 |
0.55KW*2 |
0.55KW*2 |
Weight |
400Kg |
450KG |
500KG |
550Kg |
600Kg |
|
Work Area Size (W*D*H) |
900*900*2000 |
1100*900*2000 |
1300*1000*2000 |
1500*1000*2000 |
1700*1000*2000 |
Overall size W D H |
1000*1350*2400 |
1200*1350*2400 |
1400*1400*2400 |
1600*1400*2400 |
1800*1400*2400 |
