Frame: | Powder Coated Steel / Stainless Steel Square Pipe | Size: | Customized |
---|---|---|---|
Standard: | GMP | Application: | Modular Clean Room |
Cleanliness Level: | ISO 5 | Original: | China |
High Light: | Pharmacy Modular Softwall Cleanroom,Class 100000 Modular Softwall Cleanroom,GMP Modular Softwall Cleanroom |

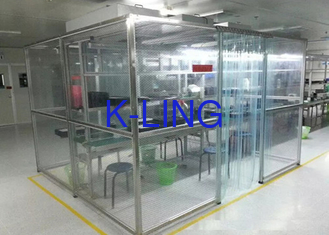

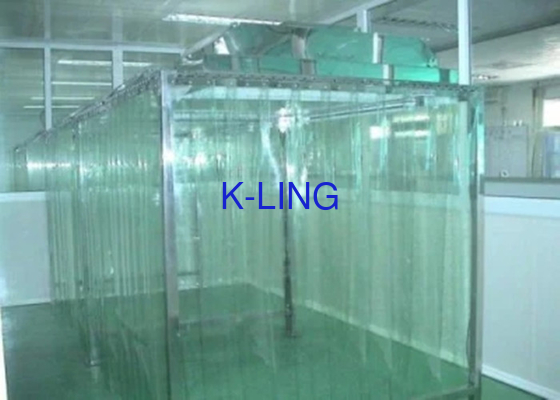

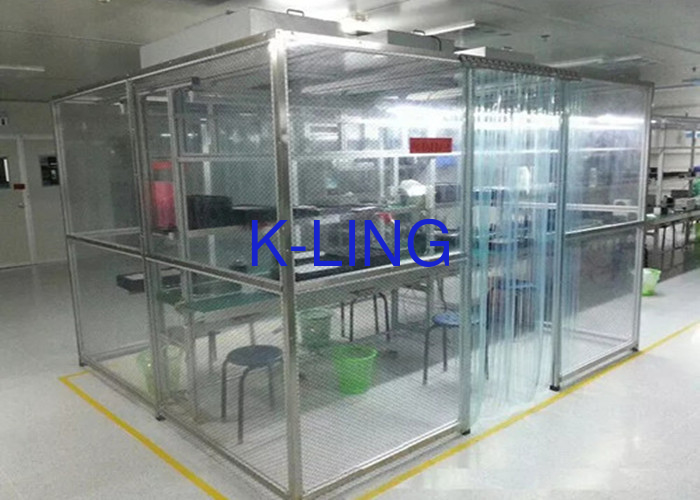

ISO5 Laminar Air Flow Clean Booth Customized Size And Stainless Steel Square Pipe
Advantages
Economy
compared to the traditional civil style clean room, the cost is greatly reduced
Efficiency
supply clean vertical airflow, maintaining the clean class level of indoor
Convenience
a standard 10'' x 10''clean both just take a few hours to install, and easy disassemble
Flexibility
bracket type can increase the number of FFU in order to raise the clean class level from ten thousand up to one hundred.
Application
Electronic plant, national defense, precision instruments, food processing, pharmacy, chemical, agricultural, biological, other industrial departments and all kinds of scientific laboratory, etc.
Structure
Frameworks: Epoxy powder coated steel / Stainless steel square pipe / Extruded aluminum
Wall material: Anti-static strip curtain / Anti-static grid curtain / Sliding door
Ceiling material: Stainless steel / Cold-rolled steel with powder coated / Anti-static grid curtain / Anti-static acrylic board
Clean class: ISO5/ ISO6 / ISO7
Parameter
Parameter | Softwall Clean Booth(PVC) | Hardwall Clean Booth(Toughened glass,color steel panel) | |
Cleanliness | From Class 100 to Class 100,000 | ||
External Dimension | As per requirement | ||
FFU | Dimension | 2*2/2*4/4*4 | |
Cabinet Material | Galvanized frame | ||
Power source | 110V/60hz/av/dc, 220V/60HZ/AV/DC | ||
HEPA Filter | H14 Hepa filter | ||
Frame Material | Stainless Steel/ aluminume profile/ powder coated steel | ||
Wall Material | Anti-static soft PVC wall 106~109Ω | plastic curtain | |
Lighting | Lamps | Available in LED and T5 | |
Air condition | As per requirement | Available in constant temperature air conditioner/constant temperature and humidity conditioner |
Customer's design is avaliable!
