PVC Shutter Door Automatic Induction Air Shower Tunnel 25-27m/S Wind Speed
Introduction
Compared with traditional cargo shower, the fast rolling curtain door cargo shower is equipped with infrared induction door closing and shutting system, the door closing switch is canceled and reach full automation function. When the showering process for person or cargo is finished, the curtain door will open and and shut after the cargo and person moving out tunnel. The two curtain door is equipped with two separate electronic interlock, when one side door is open, the other side door will shut and locked at the same time. It will effectively prevent the polluted air to enter purified area. The hair,dust, bacteria can be blocked outside clean workshop so the purified level in working area can be ensured.
Air Shower Tunnel Parameter
1.Material: SUS304
2.Outer size(mm):3650W*3050D*3550H
3.Inner size(mm):3050W*3050D*3050H
4.Air shower nozzle: mirror stainless steel nozzle,60pcs, embedded installation, distributed on both sides.
5.Purify fan: special purify centrifugal low noise fan, 6 sets, 1.1KW/Set.
6.Blowing speed: double blow, 25-30m/s, high wind speed to ensure the showing effect.
7.Showing time: touch-screen, showing shower time (0-99S adjustable).
8.Control system: PLC system, procedures can be customized according to requirements, with OTS fault display function (fault code is displayed directly on the screen).
9.Control panel: 7.1inch smart touch screen, touch-screen with two level password protection measures to prevent any set of employees.
10.Filter efficiency: three level filter, primary and medium prefilter G4 (5um), washable, primary filter is made and punched from the main plate of the air shower room, beautiful and strong, high air permeability.
11.HEPA filter: 99.99% filter efficiency, filter installation is smooth, firm, filter & frame and frame & wall panel is no
leakage, medium efficiency filter and frame use EVA seal.
12. Illumination: embedded 7W Philips LED lamp,3pcs, with function of time delay
13. Body main material: inside and outside use 1.2mm SUS304 stainless steel, brushed surface, food and medical special grade.
14. Sealing performance: making fine and beautiful. The assembly structure is adopted, the sealing strip is added at the joint. After the installation of the whole equipment, there is no leakage.
15. Doors: automatic induction door, transformer. electrical appliances use PLC control program, double doors to achieve electronic interlock.
16.Power supply:380V 50Hz,3Phase
17. Main electrical components: Schneider air switch, and Schneider contactor
18. Sealant: neutral sealant, environmental protection, no smell.
19. Safety measures: inside and out of the door electric control box installed red 'rush stop' button, in an emergency, press
the button, the system power break, double doors at the same time open for escape.
20.Installation: Customer install at site
21.Warranty: 1 year
Design drawing

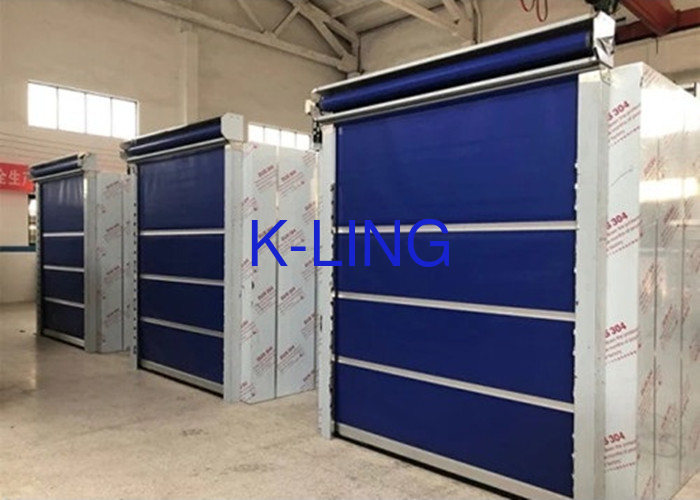

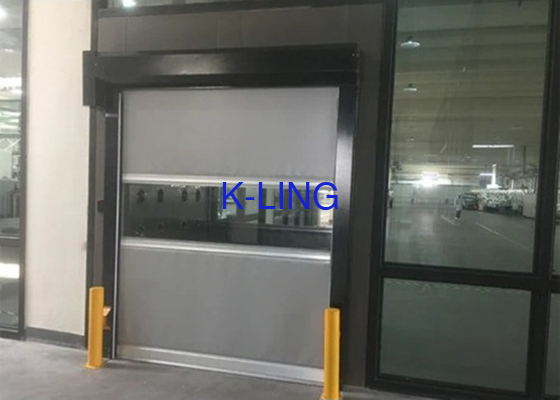

Air Shower Tunnel details photos
