Product Details:
|
| Type: | Mini Pleated Air Filter | Efficiency: | H12- H14 |
|---|---|---|---|
| Certification: | CE | Frame: | Alluminum Profile/ Sus Frame/ Powder Coated Frame |
| Warranty: | 1 Year | Original: | China |
| Highlight: | HVAC System Ultrathin HEPA Air Filter,Aluminum Frame H14 Hepa Air Filter,Laboratory Clean Room HEPA Air Filter |
||

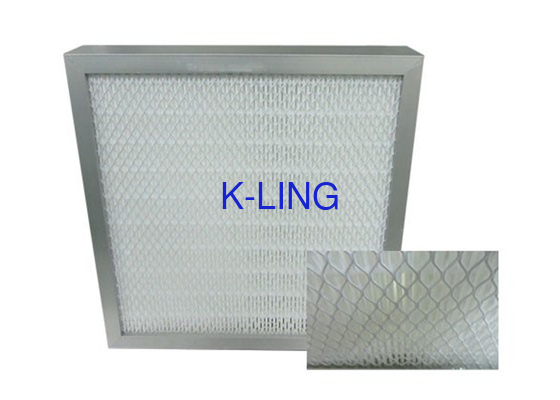

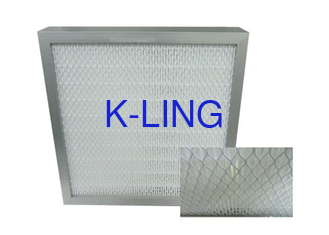

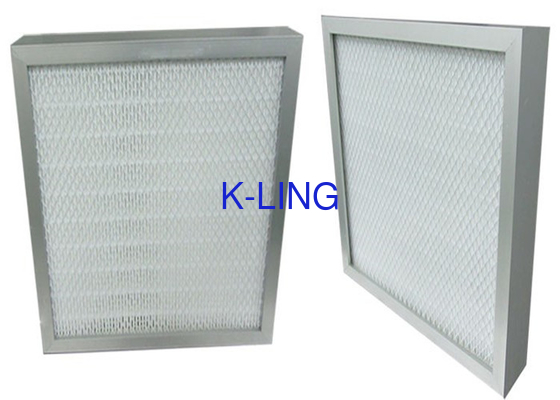

HVAC System Ultrathin H13 H14 Hepa Air Filter For Laboratory Clean Room
Features
No partition design to reduce operating costs.
Wide range of applications, compact structure, saving storage space.
Ultra-thin design saves installation time.
Application
Used for the medium filtration of the ventilation system and terminal filtration of the general cleanroom.Industries of Electronics,Chemicals,Precision Machinery,Biomedical,Food,Beverage and Environment-related Industries etc.
Material and Performance
Frame Material: Aluminum
Filter medium: Glass fiber
Partition: Hot melt adhesive
Max. humidity: 80%RH
Max. temperature: 80°C
Optional thickness of frame: 50mm / 70mm / 90mm
|
Model
|
Width
(mm)
|
Height
(mm)
|
Depth
(mm)
|
Aeration Capacity
(m³/h) |
Efficiency
(Sodium Flame) |
Frame Material |
|
KEL
|
915
|
610
|
96
|
1900/220
|
99.99
|
Aluminium
|
|
KEL
|
915
|
610
|
80
|
1450/220
|
99.99
|
|
|
KEL
|
305
|
305
|
80
|
300/220
|
99.99
|
|
|
KEL
|
915
|
610
|
69
|
1500/220
|
99.99
|
|
|
KEL
|
610
|
610
|
69
|
1000/220
|
99.99
|
|
|
KEL
|
305
|
305
|
69
|
250/220
|
99.99
|
|
|
KEL
|
915
|
610
|
50
|
1100/220
|
99.99
|
|
|
KEL
|
610
|
610
|
50
|
700/220
|
99.99
|
|
|
KEL
|
305
|
305
|
50
|
180/220
|
99.99
|
|
|
KEL
|
915
|
610
|
47
|
1000/220
|
99.99
|
|
|
KEL
|
610
|
610
|
47
|
635/220
|
99.99
|
|
|
KEL
|
305
|
305
|
47
|
160/220
|
99.99
|
