ISO Certification Replacement Panel Activated Carbon Air Filter Aluminum Frame

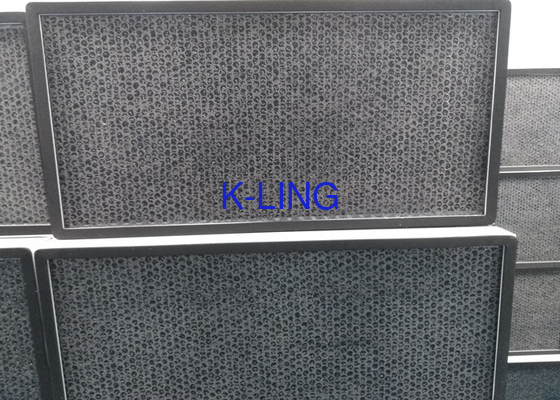

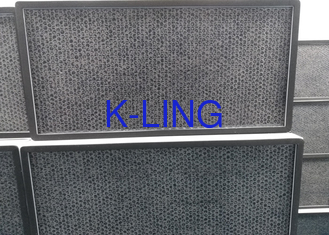

Large Image : ISO Certification Replacement Panel Activated Carbon Air Filter Aluminum Frame

Product Details:

Place of Origin:	CHINA
Brand Name:	KEL
Certification:	CE
Model Number:	KEL-AF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	negotiation
Packaging Details:	plywood packing
Delivery Time:	8-15 working day
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 set/ month

Contact Now

Detailed Product Description

Name:	Active Carbon Air Filter	Type:	Replacement Air Filter
Efficiency:	More Than 90%	Color:	Black
Application:	Clean Room	Original:	China
High Light:	Aluminum Frame Activated Carbon Air Filter , Replacement Panel Pleated Panel Air Filters

Customized Size Replacement Panel Activated Carbon Air Filter ISO Certification

Activated carbon air filter description

This product uses coconut-based, coal-based and wood-based activated carbon powder as raw material, processing formed after high temperature activation together. For cellular body appearance, has been called honeycomb activated carbon, the biggest characteristic of it is small wind resistance, strong adsorb ability, exhaust gas treatment is usually used in factories, spray-paint room in addition to flavor, water treatment, and other areas of the environmental protection. Products can be divided into two kinds of, water resistance and no water resistance.

Material and Performance

Frame Material Cardboard frame, Aluminum frame

Filter medium Granular active carbon

Sealant Polyurethane adhesive

Partition Hot melt adhesive

Max. humidity 80%RH

Max. temperature 80°C

Specification:

Product Details	Type	Panel filter, Pleated filter
	Feature	Large dust capacity,low drop
	Frame	Cardboard/aluiminum/galvanzied
	Media	Synthetic fiber
	Size	Standard or Customerized
	Metal gauze	Galvanzied/aluminum net
	Efficiency	30-50% (merv 7-merv 9)
	Class	G3,G4 or F5

Size and specification:

Model	Outside dimensions(mm)	Thickness(mm)	Rated air flow(m3/h)	Efficiency (%)	Inital resistance	Material
KEL-AF-1	595x595	21/25mm/30mm	2000-3200	G3 G4	60	Media	Active carbon
KEL-AF-2	595x295	21/25mm/30mm	1000-1500			Frame	Aluminum alloy / zinc galvanized
KEL-AF-3	595X495	21/25mm/30mm	1500-2500			Frame work	Common steel wire/ stainless steel wire
KEL-AF-4	900x495	21/25mm/30mm	3000-5000			metal gauze	Galvanized Steel Wire mesh/welded wire mesh
