Name: | Filter Fan Unit/ FFU | Application: | Clean Room |
---|---|---|---|
HEPA Filter: | 99.99%@0.3um | Control: | System Control |
Material: | Stailess Steel SUS304/201/316 /galvanized Sheet | Warranty: | 1 Year |
High Light: | Manually 800m3/H Fan Filter Unit,50Hz Fan Filter Unit,Portable Hepa Fan Filter Unit |

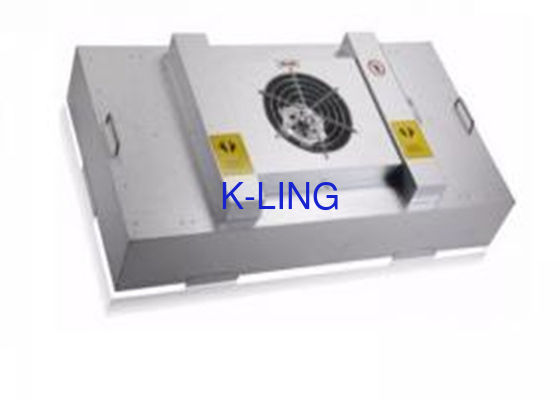

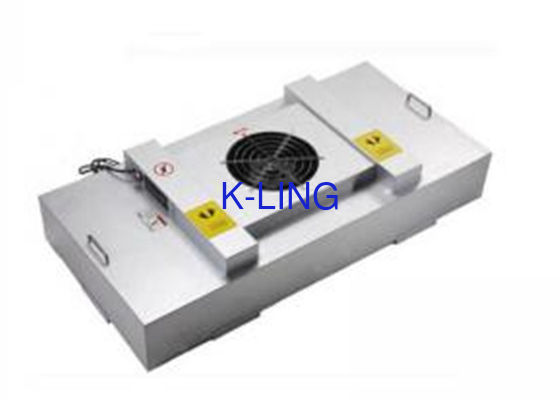

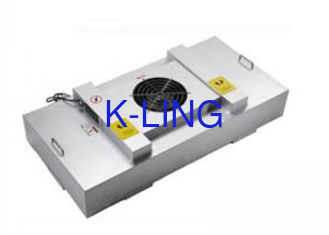

Manually 800m3/H 110V 50Hz Clean room Fan Filter Unit/ FFU Customized Size
Description:
FFU is used in the trubulent layer and laminar flow clean room,with the characterisitic of continuous use.The air flow can reach 0.45m/s±20%. It has long-life span,low noise,smallvibration,adjudtable speed.It can control thousand unit together.
Features
1. Low Noise,
2. High Airflow Capacity,
3. High Energy Efficiency,
4. Light weight and rust-resistant,
5. Instant Filter and Motor Status Indication.
Advantage of clean room with FFU:
1. The construction period can be shortened;
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;
3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;
4. Bay method or through the wall method is possible by the arrangement of layout of FFU;
5. The velocity of the air flow can be set at each area;
6. Flexible increase or change of the clean room is possible by the arrangement of FFU.
Item | KEL-FFUT-1 | KEL-FFUT-2 | KEL-FFUT-3 | KEL-FFUT-4 | |
Size (WxLxH) | 575x875x275mm | 920x615x275mm | 575x1175x275mm | 615x1225x275mm | |
Air Chamber Material | Steel / Aluminum / Stainless Steel | ||||
Air Flow | 800~900m³/h | 800~900m³/h | 1100~1200m³/h | 1100~1200m³/h | |
Air Velocity | 0.35~0.55m/s | ||||
Total Pressure | 230Pa | 230Pa | 230Pa | 230Pa | |
Power | 100W | 100W | 100W | 100W | |
Weight | 25kgs | 27.5kgs | 34kgs | 37.5kgs | |
Noise (1m below the HEPA filter) |
55~63dB | ||||
Vibration | 0.2~0.7mm/s | ||||
Power Supply | 110V/50Hz, 220V/ 50Hz, 330V/50Hz | ||||
Control Mode | 3 Levels Adjustable Manually Or Group Control Dy Computer | ||||
Options |
DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port / Differential Pressure Drop Alarm Device |
||||
HEPA Filter | Size (WxHxD) | 570x870x69mm | 915x610x69mm | 570x1170x69mm | 610x1220x69mm |
Efficiency | 99.99% 0.3μm | ||||
Frame | High Quality Anodized Aluminum | ||||
Initial Pressure Drop | 110Pa@0.45m/s±15% | ||||
Trait | PU Foam Endless Gasket |
