Certification: | CE | Type: | Mini Pleated Air Filter |
---|---|---|---|
Efficiency: | H12- H14 | Frame: | Alluminum Profile/ Sus Frame/ Powder Coated Frame |
Warranty: | 1 Year | Original: | China |
High Light: | 0.3μm Efficiency HEPA Air Filter,Electronic Clean Room HEPA Air Filter,H14 Mini Pleated Air Filter |

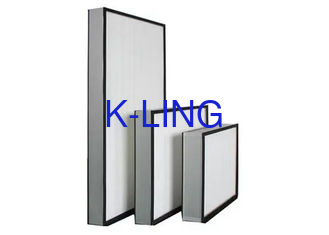

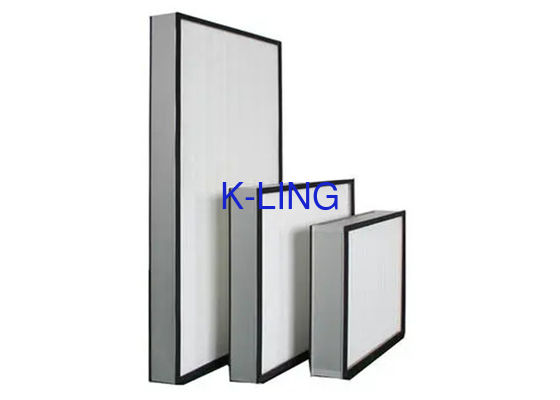

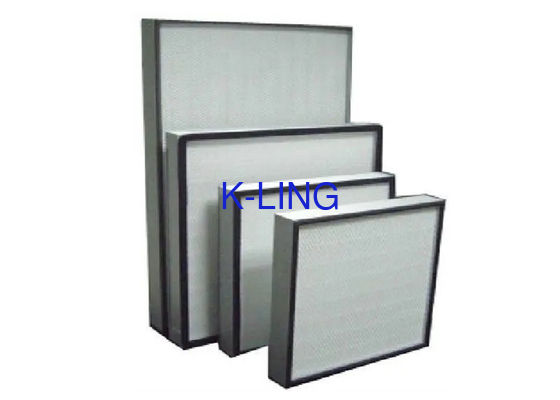

0.3μm Efficiency Mini Pleated Hepa Air Filters For Electronic Clean Room
Features :
1. high efficiency for99.99%,is the finally filtration in clean room that use for filter the particles more than 0.3um.
2. large dust capacity,because the filter media adopts the ultrathin glass fiber, the hot melt glue spacing each pleats in regular so that achieve high dust volume.
3. aluminum frame can anticorrosion for long time.
4. sealant around the media prevent the air filter is without any air leaking.
5. hepa filter with metal screens,prevent the media is without any damage.
6. light weight for easy to install.
Applications:
1. Used for electronic, medicament,food.
2. Clean room( suitable for use in multilayer filter filtration system )
3. Applied to the FFU, cleaning equipments, blow of the cleanroom and also be widely used in the electronic, semiconductor, hospital.
Model
|
Width
(mm)
|
Height
(mm)
|
Depth
(mm)
|
Aeration Capacity
(m³/h) |
Efficiency
(Sodium Flame) |
Frame Material |
KEL
|
915
|
610
|
96
|
1900/220
|
99.99
|
Aluminium
|
KEL
|
915
|
610
|
80
|
1450/220
|
99.99
|
|
KEL
|
305
|
305
|
80
|
300/220
|
99.99
|
|
KEL
|
915
|
610
|
69
|
1500/220
|
99.99
|
|
KEL
|
610
|
610
|
69
|
1000/220
|
99.99
|
|
KEL
|
305
|
305
|
69
|
250/220
|
99.99
|
|
KEL
|
915
|
610
|
50
|
1100/220
|
99.99
|
|
KEL
|
610
|
610
|
50
|
700/220
|
99.99
|
|
KEL
|
305
|
305
|
50
|
180/220
|
99.99
|
|
KEL
|
915
|
610
|
47
|
1000/220
|
99.99
|
|
KEL
|
610
|
610
|
47
|
635/220
|
99.99
|
|
KEL
|
305
|
305
|
47
|
160/220
|
99.99
|
