Product Details:
|
| Material: | Stainless Steel 304/ 201/316L | Name: | Automatic Air Shower |
|---|---|---|---|
| Application: | Modular Clean Room | Standard: | CE |
| Air Speed: | 25m/s | Original: | China |
| Highlight: | Modular Cleanroom Automatic Air Shower,GMP Workshop Air Shower Tunnel,Customized Automatic Air Shower Tunnel |
||

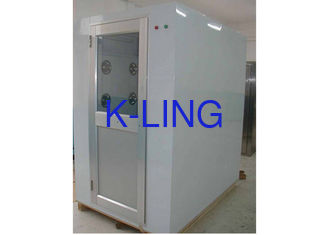

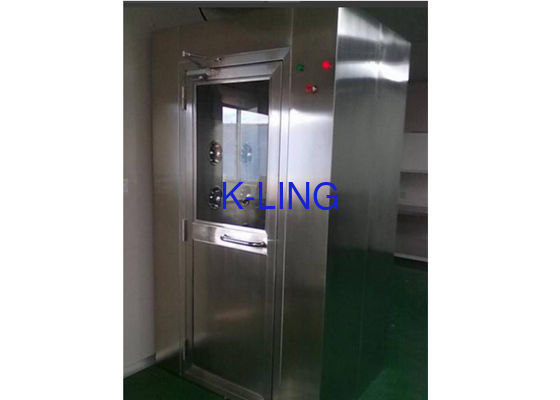

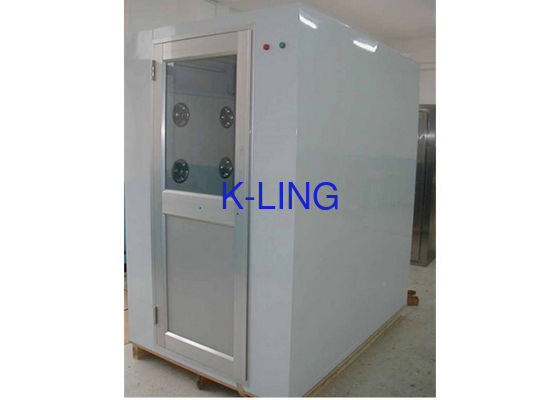

Modular Cleanroom Automatic Air Shower For GMP Workshop Customized Size
Feature
1) Material: Stainless Steel SUS304;
2) Electronic Interlock. When A door opens, B door is locking. A, B doors can not open when blowing;
3) Emergency off button is installed according to customers' needs in case of emergency happens. Once press, two doors open;
4) Color LCD screen, touch-point switch to control blowing time and lamp time. It shows reminder of HEPA filter replacement when needed;
5) Infrared sensor automatic blowing, automatic stop;
6) Two-side blowing, left and right, stainless steel nozzles. Three-side blowing can be provided according to customers' needs;
7) Germany Dorma door closer, stable. China stores also choose this type as their door closer;
8) 360-degree rotatable nozzles are installed according to customers' needs to keep high efficiency for blowing off particles from personnel;
9) Have electronic interlock air shower patent.
Parameter
| Air Shower Time | 0- 99s (Adjustable) | |||
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) | 48 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm | Φ30 mm |
| Air Velocity at the Nozzle | >25m/s | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600×600×120 | 600×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×1960 | 800×1900×1960 | 800×2900×1960 | 800×3900×1960 |
| Outside Dimension (mm) | 1400×1000×2100 | 1400×2000×2100 | 1400×3000×2100 | 1400×4000×2100 |
| Power Supply | ||||
| Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW | 4.4KW |
