KeLing Purification Technology Company Limited
-------------------------------------------------------------
Advanced. High-Qulity. Reasonable.
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Door: | Fast Shutter Door | Color: | Red/blue/ Yellow |
|---|---|---|---|
| Name: | Cargo Air Shower | Other Name: | Air Shower Tunnel |
| Original: | China | Warranty: | 1 Year |
| High Light: | Fast Shutter Door Air Shower Tunnel,3 Side Blowing Air Shower Tunnel,G3 Prefilter Air Shower Room |
||

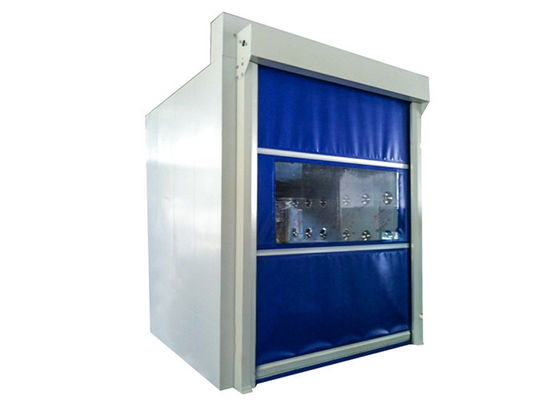

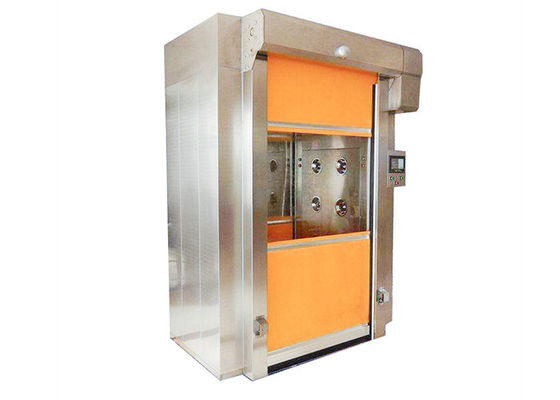

Fast Shutter Door Air Shower Tunnel/ Cargo Air Shower Cutsomized Size And Color
Introduction
Automatic PVC curtain fast shutter door cargo air shower is based on the site size, installation space, to meet the special needs of the venue. The curtain is composed of lighter fabric and windproof ribs made of aluminum. The lifting speed is quick, safe, reliable, easy to access, pestproof and dustproof, and it is convenient for large goods to enter the workshop. Suitable for high-frequency switching environments such as light industry, food industry, electronics, medicine, warehousing, packaging, printing, chemical industry, cosmetics, etc.
Fast shutter door air showers provide a modularassembly method that can be assembled into air shower sizes of various lengths as required.
Air Shower Tunnel Parameter
| Material for casing | T=1.2MM stainless steel |
| Material for doors | Stainless steel |
| Nozzles | Stainles steel |
| Door leaf | single leaf, double-leaf |
| Door type | swing doors and high speed shutter door |
| Blowing way | 3-side blowing |
| Control system | PLC |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Design drawing
Air Shower Tunnel details photos
