| Door: | PVC Door/ Fast Rolling Foor/ Fast Shutter Door | Color: | Red |
|---|---|---|---|
| Name: | Cargo Air Shower | Frame: | Sus 304 |
| Original: | China | Warranty: | 1 Year |
| High Light: | PLC Control Air Shower Tunnel,SUS 304 Frame Air Shower Tunnel,Fast Shutter Door Air Shower System |
||

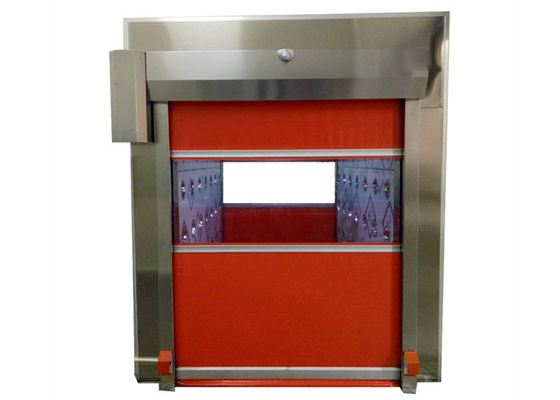

Cargo Air Shower PVC Door/ Fast Rolling Door/ Fast Shutter Door Air Shower Tunnel
Feature
A, PVC automatic roller shutter doors with high-strength anti-oxidation aluminum alloy door frames, cold rolling steel electrostatic spraying motor door covers and door frames.
B, with imported brake brake motor, power 0.75-1.5KW, power supply 220V/380V, braking voltage 220V.
C, opening and closing speed adjustable: switch 0.8-99m / sec adjustable.
D, PVC curtain material: imported high-density polyester fiber surface coating processing, thickness 0.8mm-1.5mm, the color can be selected.
E, wind resistant material: aluminum alloy wind ribs, segmented connection, easy to replace.
F. Sealing performance: U-shaped airbag cloth pocket at the bottom of the curtain can be closely attached to the uneven surface, and the sealed edges of the door frame are dustproof and insect-proof.
H, security configuration: standard infrared photoelectric protection, pressure airbags, warning lights, anti-collision columns, power manual rocker
Air Shower Tunnel Parameter
| Material for casing | T=1.2MM stainless steel |
| Material for doors | Stainless steel |
| Nozzles | Stainles steel |
| Door leaf | single leaf, double-leaf |
| Door type | swing doors and high speed shutter door |
| Blowing way | 3-side blowing |
| Control system | PLC |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Design drawing

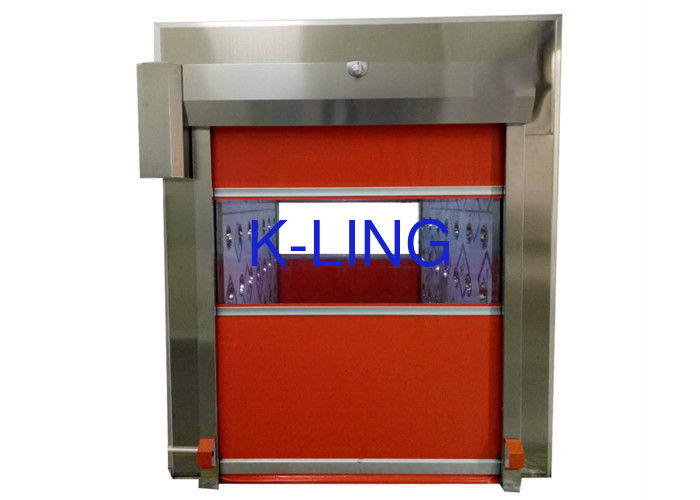

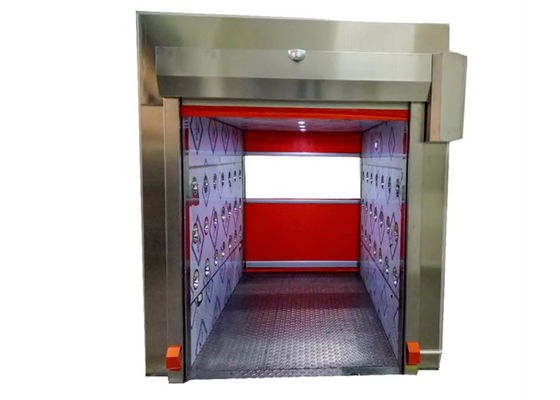

Air Shower Tunnel details photos
