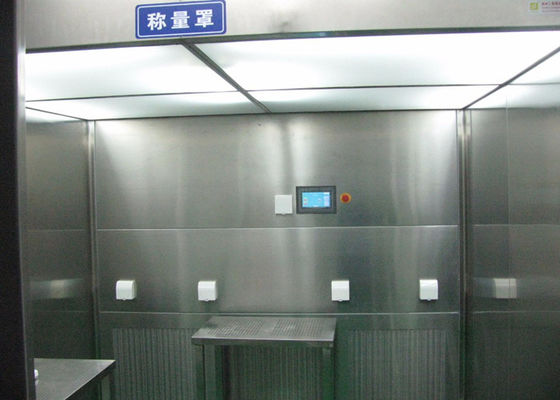

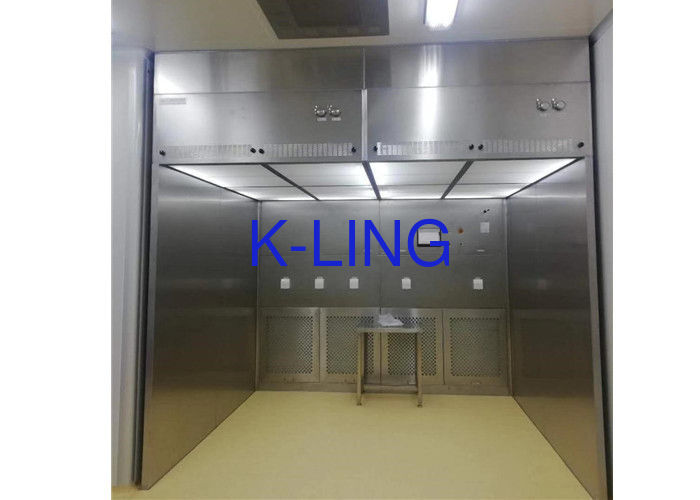

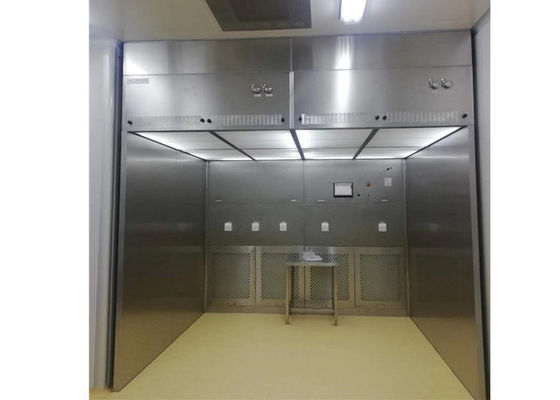

Electrical Stainless Steel Sampling / Weighing Booth For GMP Factory

Stainless Steel Sampling Booth/Dispensing Booth/Weighing Booth for GMP Factory

Technology Parameters

Product name: Weighing Booth, Dispensing Booth, Sampling Booth for GMP, Negative pressure chamber
Cabinet material: AISI 304 / SUS304
Curtains: Striped curtains and 0 cm from the floor
Fan: Centrifugal fans with static and dynamic equilibrated turbine
Potentiometer: Control the air velocity
Type: 10% fresh air
Air flow :Vertical
Clean level: ISO class 5 (Class 100)
Noise :<70 dB ( testing 1 meter from machine)
Light intensity: More than 600 Lux
Air speed 0.36 ~ 0.54 m/s
Filter 1: G2 synthetic fiber pre-filters
Filter 2: F7 bag filter
Filter 3: H14, 99.997%
Differential gauges:Each filter for one differential gauge with alarm function
Gauges type: Divided by zones-Green, Orange and Red
Indication lamp alarm: For motor/fan fault
Aceessories: With E-Stop,PLC( Siemens)
Power supply :230V(±10%)/ 50Hz Single-phase or 380V/50Hz ,3P
Warranty: 1 year

Feature

1.Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2.Differential pressure gauge is equipped to real-time monitor the filters.
3.Unique designed air duct effectively controls the noise.
4.Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5.Intelligent control mode and alarm system ensure the reliability of running.
6.Smooth transitions of wall and ground can eliminate the blind angle.
7.Customized design is welcome.

Parameter

Customer's design is available.

ABOUT US :

GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.

Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.

Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
