| Certification: | CE | Type: | Mini Pleat Air Filter |
|---|---|---|---|
| Efficiency: | H12- H14 | Frame: | Alluminum Profile |
| Warranty: | 1 Year | Original: | China |
| High Light: | H12 Mini Pleat HEPA Filter,Clean Room Pleated Hepa Filter,H14 Pleated Air Filter |
||

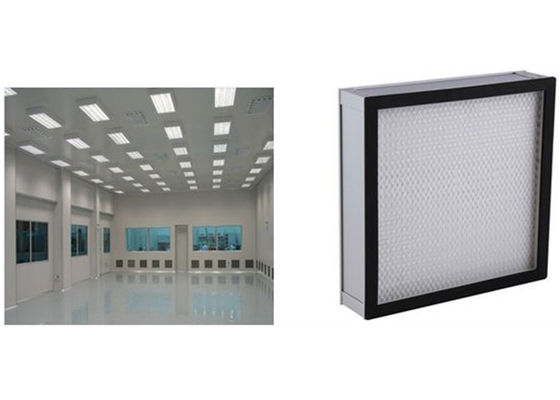

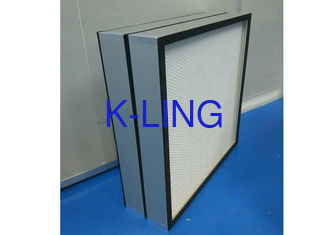

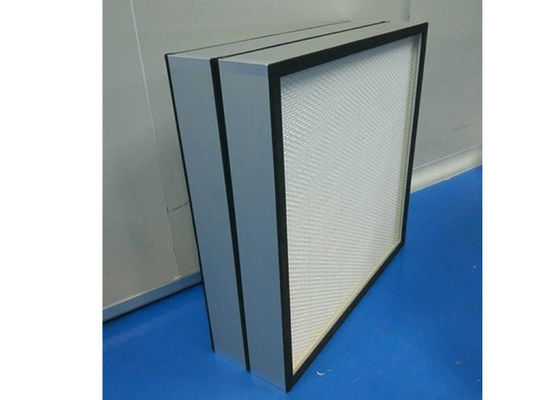

H12-H14 Mini Pleated HEPA Filter For Food And Beverage Industry Clean Room
Introduction
Hepa filters are mainly used to catch particulate dust and various suspended substances below 0.3um.
The basic requirements are high filtration efficiency, low flow resistance and continuous use for a long time to reduce the cost of consumables in the later stage.
Use made of super fine glass fiber paper, offset paper, aluminum membrane materials, such as partition board, with wooden frame aluminum alloy agglutination, the use of special silicone rubber, no smell, not surface hardening, long time also won't have crack, stable chemical performance, corrosion resistance, can absorb heat bilges cold shrink stress without cracking, moderate hardness, good elasticity.
Detail
Application:HEPA-/ULPA filter for clean rooms and LAF benches.
Type:HEPA-/ULPA-Filter.
Frame: Extruded and anodised aluminum.
Gasket:Polyurethane.
Efficiency acc. EN 1822:2009: H14, U15. MPPS Efficiency acc. EN 1822:2009: ≥99,995%, ≥99,9995% at MPPS.
Recommended final pressure drop: 2x initial pressure drop.
Maximum pressure drop: MD: 500 Pa; MX: 600 Pa.
Temperature/Humidity: 8C / 100% RH.
