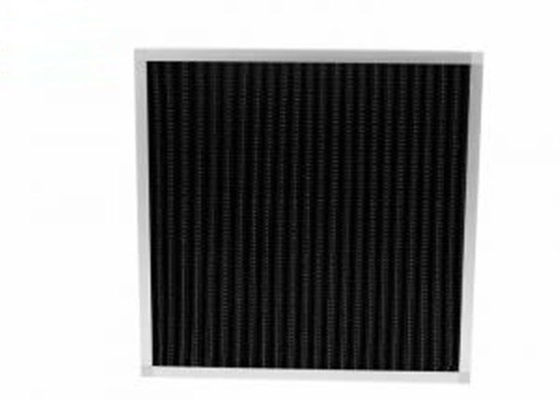

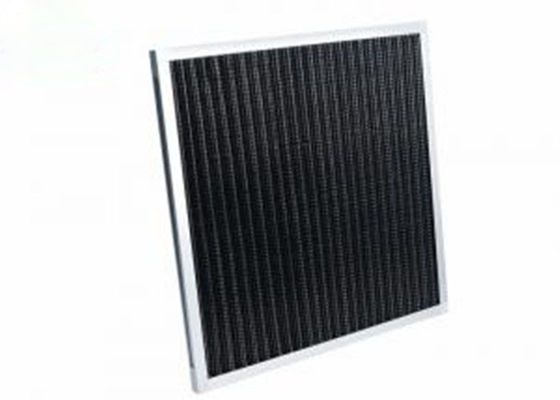

Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell

Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell
Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell

Large Image :  Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set/ month
Detailed Product Description
Application: Remove VOCs And CO2 Type: Activate Carbon Filter
Structure: Pleated Panel Filter Certification: ISO
Original: China Warranty: 1 Year
High Light:

Galvanized Steel Frame Industrial Carbon Filter

,

Pleated Panel Active Air Carbon Filter

Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell







Applications:



The Carbon filter are used for filtration of airborne particles, odors, smoke, noxious gas in civil and industrial air conditioning systems. It is commonly also used as pre-filtration stage for fine dust filters.





Detail



Media: Activated carbon fiber or Activated carbon felt
Frame: Aluminium or Galvanized steel
Average arrestance: 92%
Gasket: EVA foam.
Recommended final pressure drop:200 Pa
Humidity resistance: 60%
Max Temperature: 80 ℃
DIN 53438 Flammability: F1
UL 900 Standard : Class 2
Max.air flow rate: 125% of rated air flow
Media color available: black
Filter standard depth available 2 inch(46mm) and 4 inch(96mm)
Galvanized mesh protection in air down steam side.





Parameter



Nominal Size

WxHxD.inch

Actual Size

WxHxD.mm

Rated Airflow(m3/hr)

Initial Pressure

Drop (Pa)

Removal Efficiency (%)
24x24x1 595x595x21 1600





40





Depending on field condition

20x24x1 495x595x21 1350
12x24x1 295x595x21 800
24x24x2 595x595x46 3200
20x24x2 495x595x46 2700
12x24x2 295x595x46 1600

Other sizes is available!



Pleated Activated Carbon Air Filter For Filtration Of UnPleasant Smell 0
